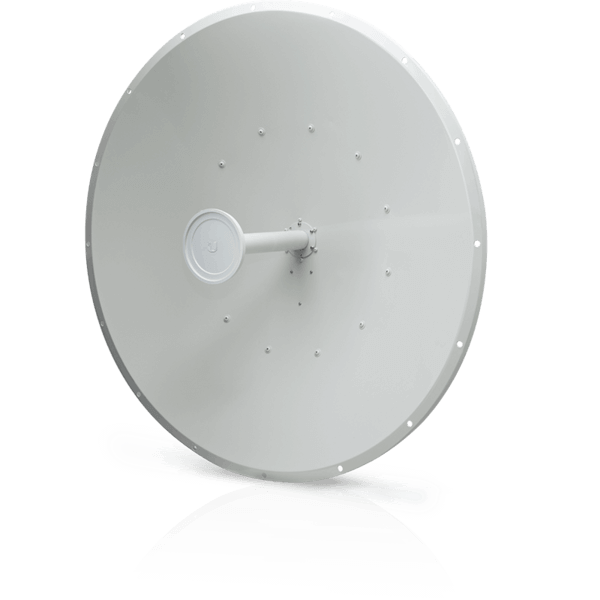

Ubiquiti RocketDish 4.9-5GHz 34dBi Dual-Pol Parabolic Antenna

RD-5G34

airMAX® 2x2 PtP Bridge Dish Antenna Pair the RocketDish™ with a Rocket™M BaseStation for Point-to-Point (PtP) bridging and network backhauls.

Product Specification

• Dimensions: 1050 x 1050 x 421 mm

• Weight: 13.5 kg

• Frequency Range: 4.9 - 5.8 GHz

• Gain 4.9 GHz: 30 dBi | 5 - 5.8 GHz: 34 dBi

• HPOL Beamwidth: 3° (3 dB)

• VPOL Beamwidth: 3° (3 dB)

• F/B Ratio: 42 dB

• Max. VSWR: 1.4:1

• Wind Loading: 1,779 N @ 200 km/h

• Wind Survivability: 200 km/h

• Polarization: Dual-Linear

• Cross-pol Isolation: 35 dB Min.

• ETSI Specification: EN 302 326 DN2

• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
