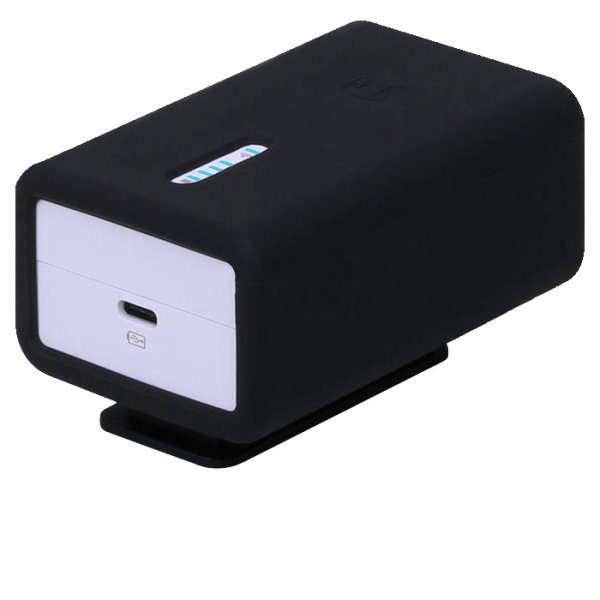

Ubiquiti U-Installer Ubiquiti Installer

U-INSTALLER

The U-Installer is a useful tool to make airMAX CPE installation easier. It provides Wi-Fi connectivity and 24V PoE power to a CPE, so you can use the intuitive UNMS Mobile app on a smartphone or tablet for alignment and configuration.

Product Specification

• Dimensions: 93 x 57 x 38.2 mm

• Processor: Atheros MIPS 74KC, 560MHz

• Memory: 64 MB DDR2

• Buttons:

• (1) Reset U-Installer

• (1) Reset External airMAX Device

• (1) Power On/Off

• Networking Interfaces:

• (1) 10/100 Ethernet Port

• Wi-Fi

• Passive PoE Output:

• Voltage: 24V Max.

• Power: 12W

• Management Interface: Wi-Fi

• Wi-Fi Frequency: 2.4 GHz

• Wi-Fi Standards : 802.11b/g/n

• Power Method:

• Internal Battery

• USB Mobile Battery Pack: 5V, 3A (Not Included)

• Power Supply: 5V, 3A

• Supported Voltage Range: 4.95 - 5.05V

• Max. Power Consumption: U-Installer: 3W

• Max. Power Consumption with CPE: 15W

• LEDs: (1) Wi-Fi (4) Battery

• ESD/EMP Protection: 24kV Contact / Air

• Operating Temperature: 0 to 35° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
