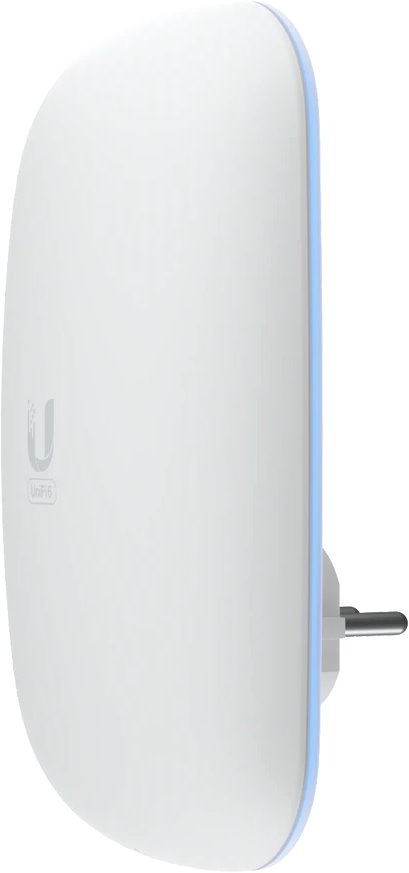

Ubiquiti U6-Extender - UniFi Access Point U6 Extender

U6-Extender

Easy-to-deploy WiFi 6 coverage extender with a 5.3+ Gbps aggregate throughput rate.

The UniFi6 Extender (U6 Extender) is a portable, plug-and-play WiFi 6 access point that can easily and instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks. Deploying this access point is as simple as plugging it in, and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic. The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or UniFi mobile app.

• Dual-band WiFi 6 connectivity

• 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate

• 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate

• Fits any standard EU wall outlet

• Easily extends wireless coverage across large homes or offices

IMPORTANT: These requirements must be met to wirelessly adopt the U6 Extender:

• APs providing wireless connectivity for the U6 Extender must be updated to Version 6.0.11 or later.

• Dream Machines (UDM) must be updated to Version 1.12.22 or later.

• Dream Routers (UDR) must be updated to Version 2.3.15 or later.

Product Specification

• Dimensions: 169.7 x 112.2 x 77.6 mm (6.68 x 4.42 x 3.05")

• Weight: 340g

• Enclosure material: Plastic

• Management interface: Bluetooth

• Power method: Universal AC input, 100—240V AC, 0.3A max., 50/60 Hz

• Supported voltage range: 110—240V AC

• Max. power consumption: 11W

• Max. TX power

• 2.4 GHz:  22dBm

• 5 GHz: 26 dBm

• MIMO

• 2.4 GHz: 2 x 2 (UL MU-MIMO)

• 5 GHz: 4 x 4 (DL/UL MU-MIMO)

• Throughput rate

• 2.4 GHz: 573.5 Mbps

• 5 GHz: 4.8 Gbps

• Antenna gain

• 2.4 GHz: 5 dBi

• 5 GHz: 6 dBi

• LEDs: White/blue

• Button: Factory reset

• Operating temperature: -10 to 50° C (14 to 122° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: FCC, IC

• WiFi standards:

• 802.11a/b/g

• WiFi 4/WiFi 5/WiFi 6

• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID: 8 per radio

• VLAN: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation: Supported

• Concurrent clients: 300+

• Zero wait DFS: Yes

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)

• 802.11ac (WiFi 5): 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

• 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
