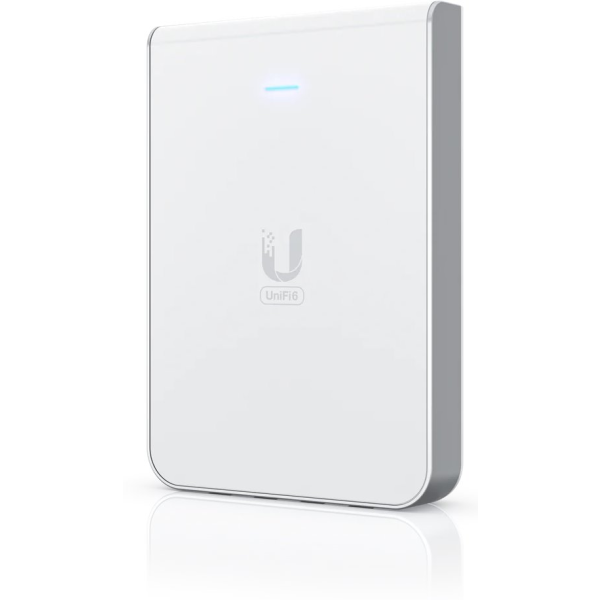

Ubiquiti U6-IW - Access Point U6 In-Wall

U6-IW

Wall-mounted WiFi 6 access point with a built-in PoE switch.

• WiFi 6 support (2.4/5 GHz bands)

• 5.3 Gbps aggregate throughput rate

• (1) GbE RJ45 port (PoE In)

• IPX5-rated, weatherproof casing

• (4) GbE RJ45 ports, including one that supports PoE output*

* PoE+ input required.

Product Specification

• Dimensions: 139.66 x 96 x 31.19 mm

• Weight: 460 g (1.01 lb)

• Enclosure materials: Plastic, aluminum

• Mount material: Aluminum

• Management interfaces: Ethernet, Bluetooth

• Networking interfaces:

• (1) Data-in: 1GbE RJ45 port

• (4) Data-out: 1GbE RJ45 ports

• PoE interfaces:

• (1) PoE in (PoE output not used)

• (1) PoE out (requires a PoE+ switch)

• Button: Factory reset

• LED: White/blue

• Power method: PoE

• Power supply:

• UniFi PoE switch

• 48V, 0.5A PoE adapter (optional)

• Max. power consumption: Excluding PoE output: 13.5W

• Max PoE wattage per port by PSE: 15.4W (Requires a PoE+ switch)

• Voltage range PoE mode: 44—57V DC

• Operating temperature: -30 to 60° C (-22 to 140° F)

• Operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

• WiFi standards:

• 802.11a/b/g

• WiFi 4/WiFi 5/WiFi 6

• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

• BSSID: 8 per radio

• VLAN: 802.1Q

• Advanced QoS: Per-user rate limiting

• Guest traffic isolation: Supported

• Concurrent clients: 300+

• Zero-wait DFS: Yes

• Supported Data Rates:

• 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b : 1, 2, 5.5, 11 Mbps

• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (WiFi 4) : 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

• 802.11ac (WiFi 5) : 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

• 802.11ax (WiFi 6) : 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
