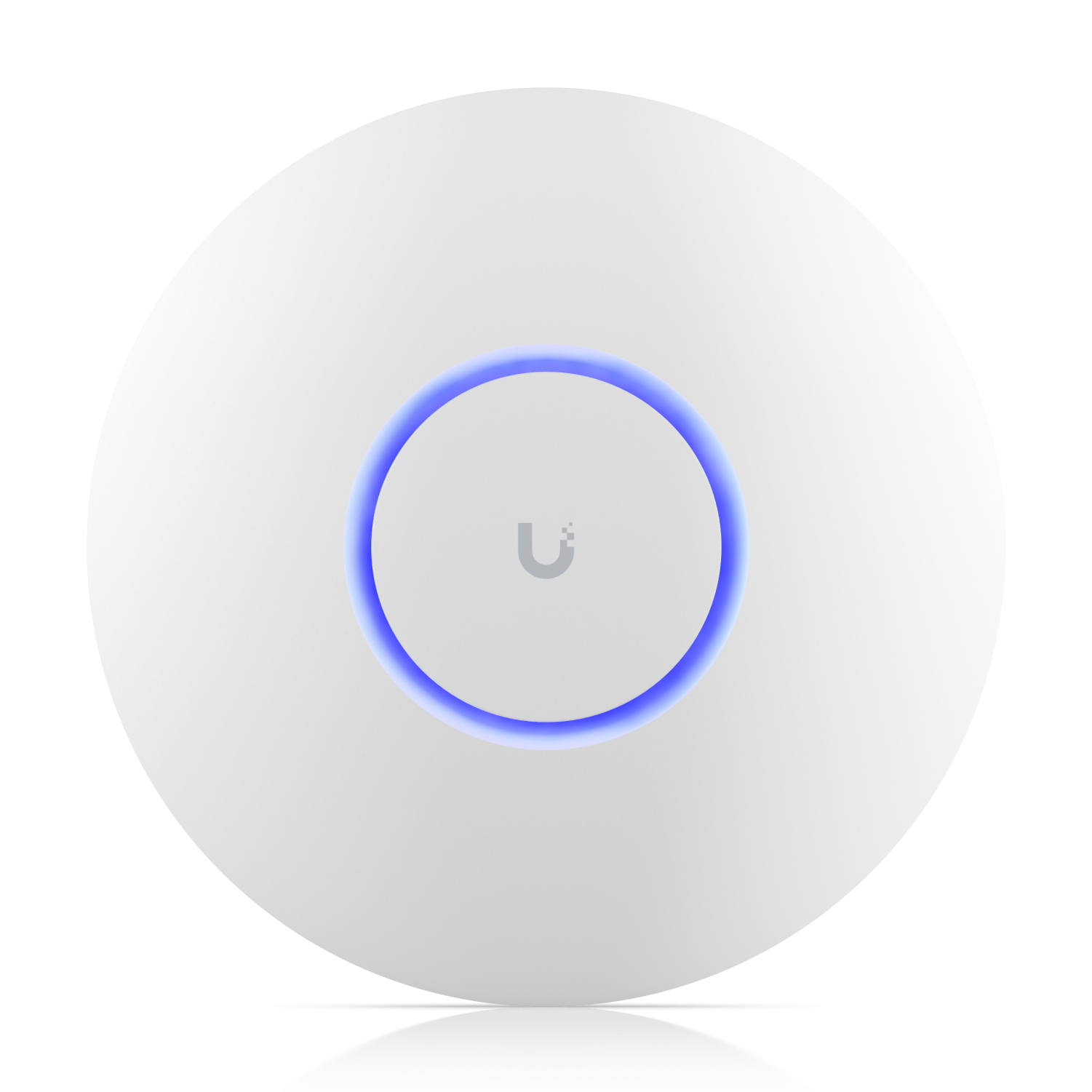

Ubiquiti U6-Lite - UniFi 6 Lite Access Point

U6-Lite

Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.

UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

Features:

• 2x2 high-efficiency Wi-Fi 6

• 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps

• 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps

• Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)

• Compatible with UAP-nanoHD covers and recessed mounting bracket

Product Specification

• Dimensions: Ø160 x 32.65 mm (Ø6.3 x 1.3")

• Weight Without Mount: 300 g

• With Mount: 315 g

• Processor Specs: 880 MHz MIPS 1004 KEc

• Memory Information: 256 MB

• Management Interface: Ethernet In-Band

• Networking Interface: (1) 10/100/1000 Mbps Ethernet RJ45

• Buttons: Factory Reset

• LEDs: White/Blue

• Power Method: 802.3af PoE, Passive PoE (48V)

• Power Supply: 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)

• Supported Voltage Range: 44 to 57VDC

• Max. Power Consumption: 12W

• Max. TX Power:

• 2.4GHz: 23 dBm

• 5GHz: 23 dBm

• MIMO:

• 2.4GHz: 2 x 2

• 5GHz: 2 x 2

• Throughput Speeds:

• 2.4GHz:300 Mbps

• 5GHz: 1201 Mbps

• Antenna Gain:

• 2.4GHz: 2.8 dBi

• 5GHz: 3 dBi

• Operating Temperature: -30 to 60° C (-22 to 140° F)

• Operating Humidity: 5 - 95% Noncondensing

• Certifications: CE, FCC, IC

• Wi-Fi Standards :

• 802.11a/b/g

• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

• BSSID: 8 per Radio

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Trafc Isolation: Supported

• Concurrent Clients: 300+

• Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (Wi-Fi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11ac (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

• 802.11ax (Wi-Fi 6): 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

  POE NOT INCLUDED
