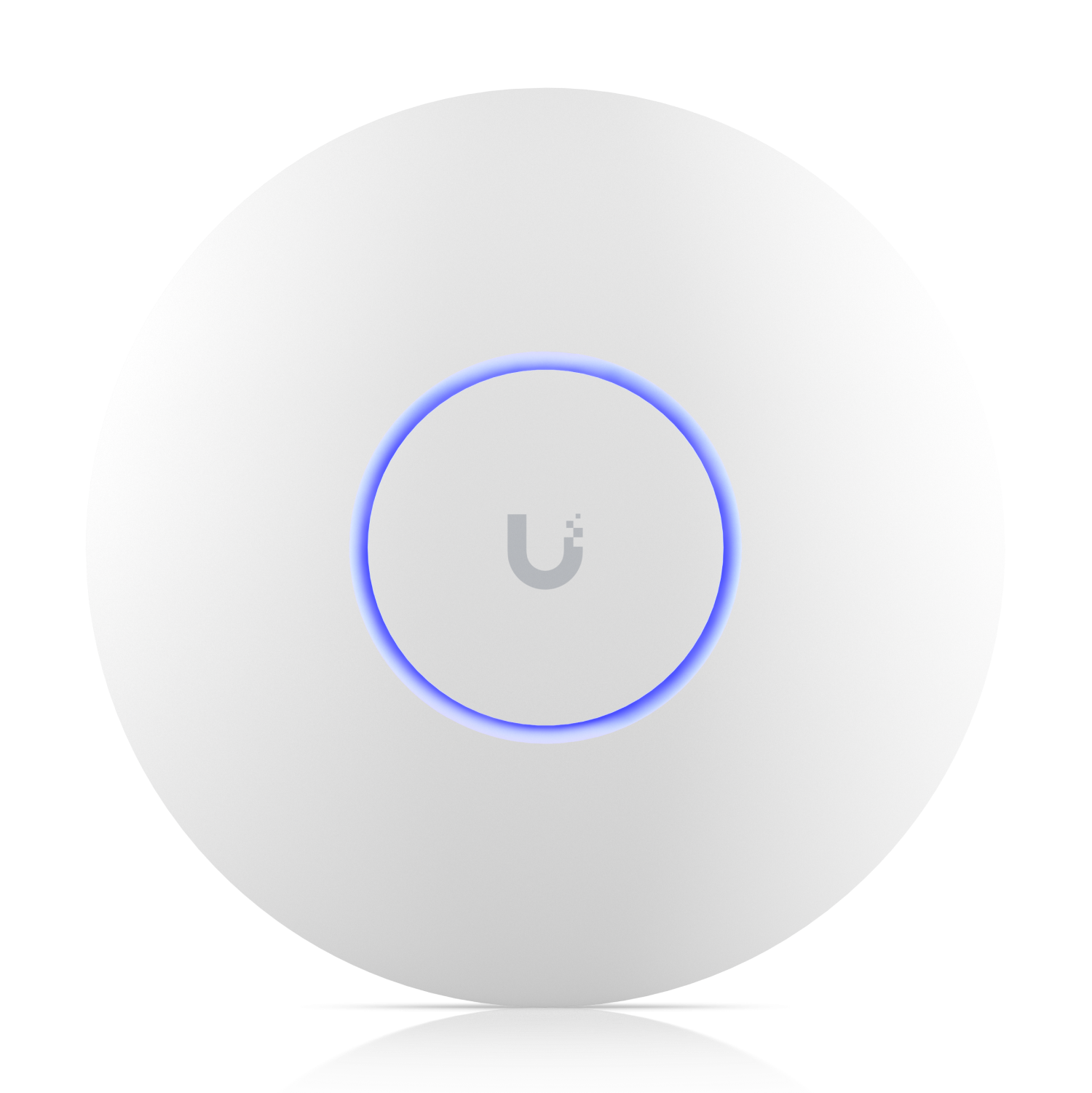

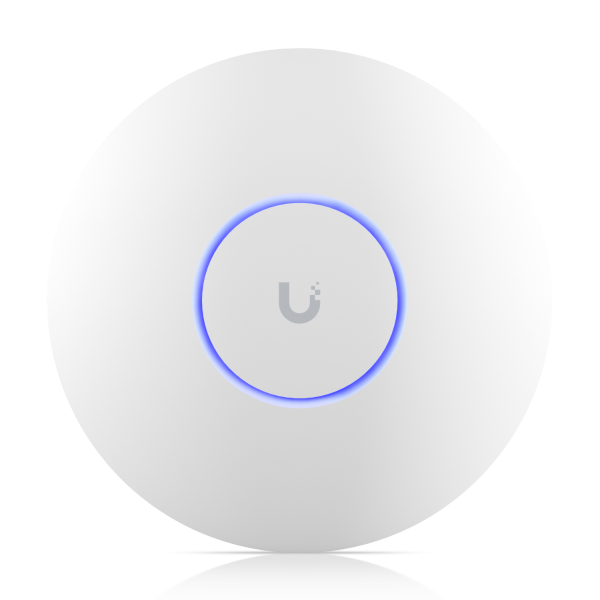

Ubiquiti U6-LR - UniFi 6 Long-Range Access Point

U6-LR

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

Features:

• 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)

• Four-stream high-efficiency Wi-Fi 6 technology

• 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps

• 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps

• Powered with 802.3at PoE (PoE injector not included)

Product Specification

• Dimensions: Ø220 x 48 mm

• Weight Without Mount: 800 g

• Weight With Mount: 930 g

• Enclosure Material: Plastic

• Mount Material: SGCC Steel

• Weatherproofing: IP54

• Processor Specs: Dual-Core® Cortex® A53 at 1.35 GHz

• Memory Information: 512 MB

• Management Interface:

• Ethernet

• Bluetooth Low Energy 5.0

• Networking Interface: (1) 1 Gbps Ethernet RJ45

• Button: Factory Reset

• LED: RGB

• Power Method: PoE+, Passive PoE (48V)

• Power Supply:

• UniFi PoE Switch

• 48V, 0.5A PoE Adapter (Not Included)

• Supported Voltage Range: 44 to 57VDC

• Max. Power Consumption: 16.5W

• Max. TX Power:

• 2.4GHz: 26 dBm

• 5GHz: 26 dBm

• MIMO:

• 2.4GHz: 4 x 4

• 5GHz: 4 x 4

• Throughput Speeds:

• 2.4GHz:600 Mbps

• 5GHz: 2400 Mbps

• Antenna Gain:

• 2.4GHz: 4 dBi

• 5GHz: 5.5 dBi

• Mounting: Wall/Ceiling (Kits Included)

• Operating Temperature: -30 to 60° C

• Operating Humidity: 5 - 95% Noncondensing

• Certifications: CE, FCC, IC

• Wi-Fi Standards :

• 802.11a/b/g

• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

• BSSID: 8 per Radio

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• Concurrent Clients: 300+

• Certifications

• CE, FCC, IC

• 802.11a/b/g

• Wi-Fi 4/Wi-Fi 5/Wi-Fi 6

• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)

• BSSID: 8 per Radio

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Trafc Isolation: Supported

• Concurrent Clients: 300+

• Supported Data Rates (Mbps)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11n (Wi-Fi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

• 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

• 802.11ax (Wi-Fi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

*Supported With Upcoming Controller Versions
