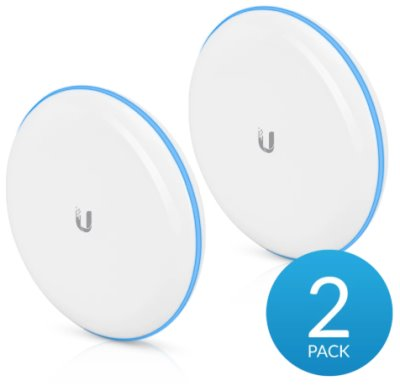

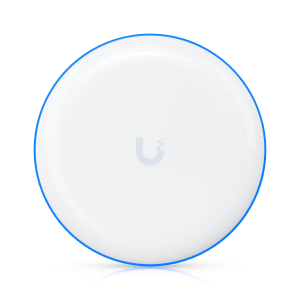

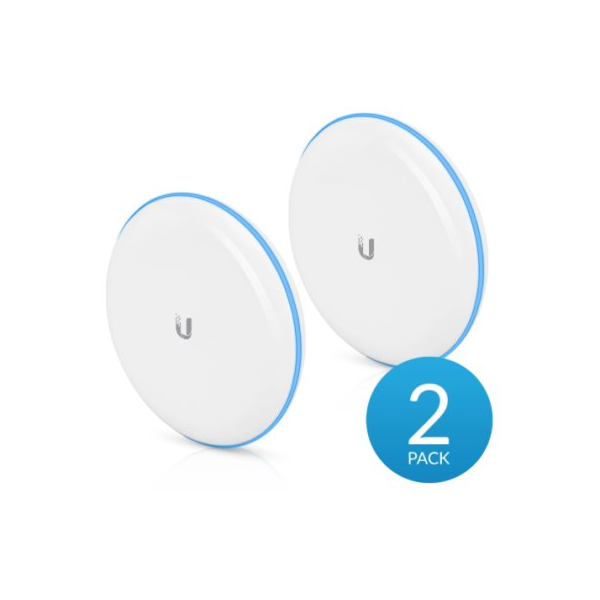

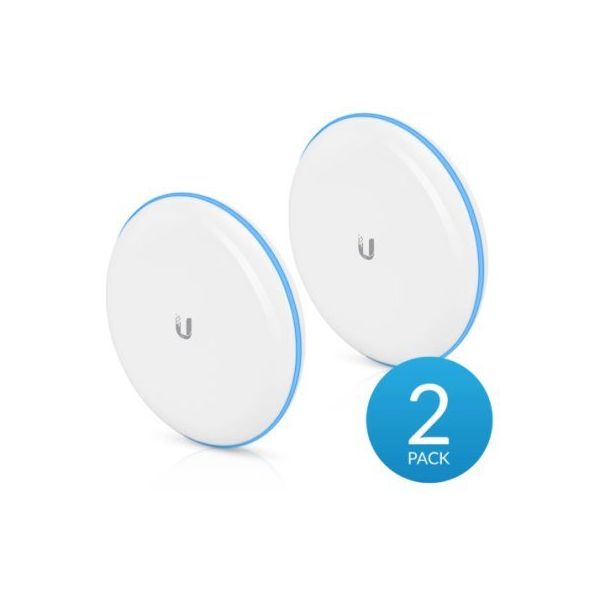

Ubiquiti UBB, UniFi Building Bridge

UniFi Building-to-Building Bridge

1.7+ Gbps bi-directional Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m

UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

Package Contents:

• UniFi Building-to-Building Bridge (x2)

• Ball joint mount (x2)

• Lock ring (x2)

• Metal strap (x2)

• Gigabit PoE (48V, 0.32A) with mounting bracket (x2)

• Power cord (x2)

Product Specification

• Dimensions: 140 x 140 x 90 mm

• Weight: 376 g

• Antenna Gain:2.4 GHz (BLE): 2 dBi | 5 GHz: 10 dBi | 60 GHz: 17.2 dBi

• GPS: Yes

• Max. TX Power: 25 dBm (5 GHz)

• Interfaces:

• Networking : (1) 10/100/1000 Ethernet Port

• Management: Bluetooth

• Enclosure: UV-Resistant Polycarbonate

• Power Method: 802.3af Supported | Passive Power over Ethernet (48V)

• Power Supply: UniFi PoE Switch | 48V, 0.32A Gigabit PoE Adapter (Included)

• Max Power Consumption: 11W

• Wind Loading: 56 N @ 200 km/h

• Wind Survivability: 200 km/h

• Mounting:

• Pole-Mount (Kit Included)

• Wall-Mount (Not Included)

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• Operating Frequency Worldwide (MHZ):

• 5150 - 5875

• 57,000 - 66,000

• Bluetooth Frequency Worldwide (MHZ): 2400 - 2483.5
