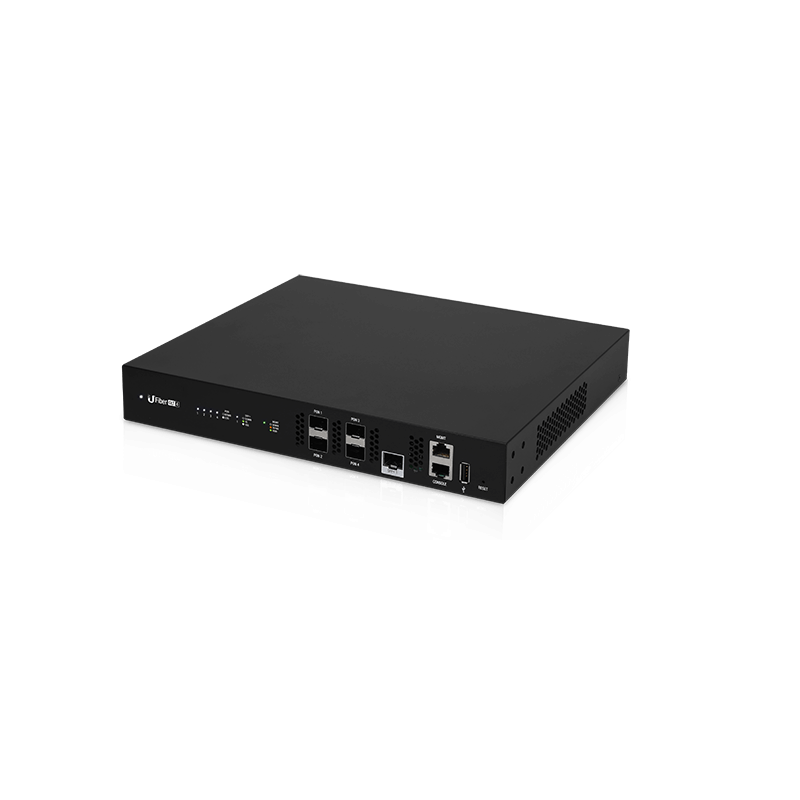

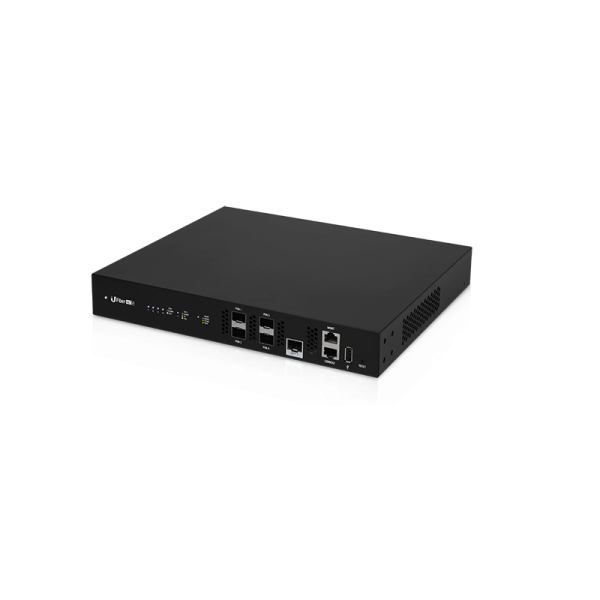

UBIQUITI UF-OLT-4 512 Client Capacity GPON OLT with UNMS

UFiber 4 OLT

UF-OLT-4

Features:

• 4-Port GPON Optical Line Terminal

• 4 Gigabit Passive Optical Network Ports

• Supports up to 512 Clients (128 per PON Port)

• Up to 2.488 Gbps TX and 1.244 Gbps RX

• One 1G/10G SFP+ Ethernet Ports

• Flexible Layer 2/3 Management Features

• Ethernet port for management

• Console serial port for management

• 24V DC Input Option (Redundant or Stand-Alone)

Product Specification:

• Dimensions: 299.8 X 258.95 X 42.55 mm

• Weight without hangers: 1930g

• Weight with hangers: 2130g

• Enclosure Characteristics: SGCC steel

• Processor: MIPS 1004Kc 880 Mhz dual core

• Memory: 512 Mbyte DDR3, 512M Byte NAND

• Management Interface:

• (1) Ethernet out-of-band management

• (1) Ethernet in-band management

• (1) RJ45 Serial Console Port

• Networking Interface:

• (4) GPON OLT SFP

• (1) 10 Gbps SFP+

• Buttons: (1) Reset, Press 5 seconds - Reset to default

• Power Method: 100-240VAC/50-60 Hz universal input / 25VDC

• Power Supply: AC/DC internal 56W DC / DC barrel jack connector

• Supported Voltage Range: AC input: 100 to 240 VAC / 25 to 16VDC

• Max. Power Consumption: 35W (Excluding SFP modules)

• Operating Temperature: -10 to 45°C

• Operating Humidity: 10% to 90% Non-Condensing

• Mode: OLT 2/3 Ethertnet Switch and GPON Core

• Advanced QoS: Support 8 priority queues per user port and traffic classification

• Concurrent Clients: 512 ONUs/ONTs registered

• Ubiquiti Specific Features: UBNT Discovery and UBNT mcagent

• Minimum Software Requirements: Any Modern Web Browser
