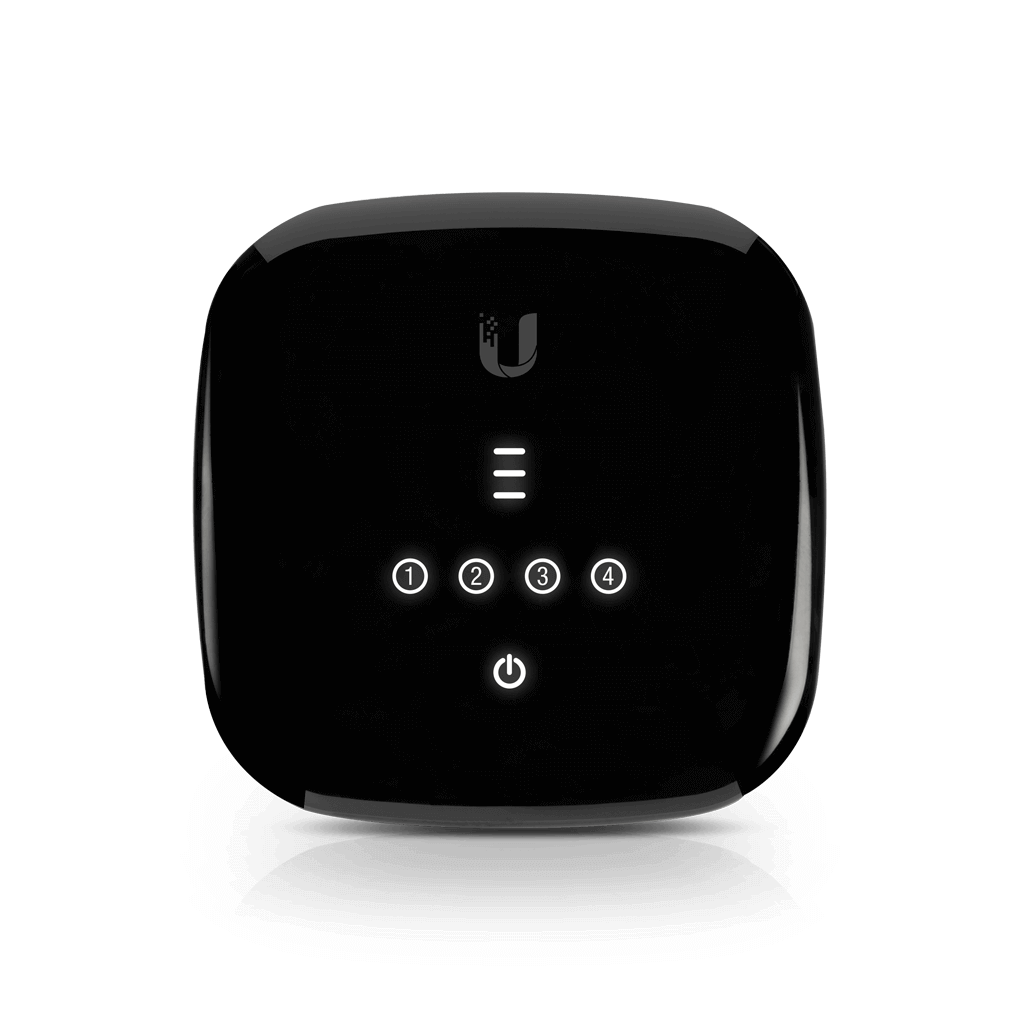

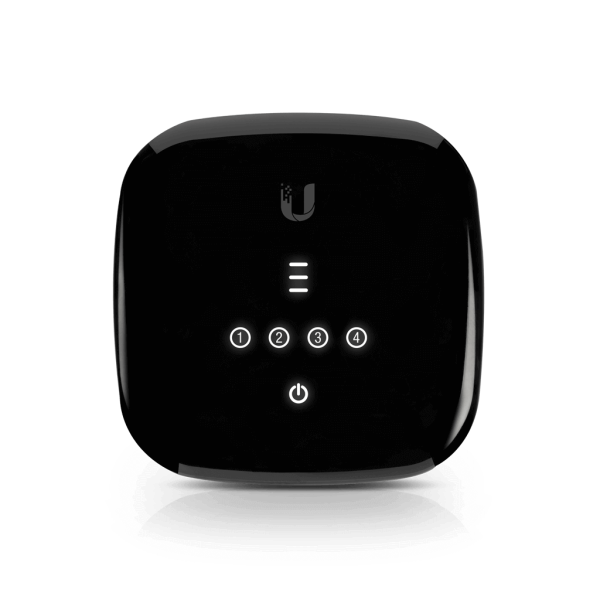

UBIQUITI UF-WiFi GPON

UF-WiFi

UFiber WIFI is a robust, high-performance GPON CPE that offers routing, four LAN ports, and Wi-Fi.

It is powered by 24V passive PoE or a 24V, 0.5A power adapter.

Features:

• High-Performance GPON CPE

• Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream

• Supports up to 20 km GPON Links

• Powerful Layer 2/3 Management Features

• (1) GPON WAN Port

• (4) RJ45 Gigabit LAN Port

• Powered via supplied PSU or passive PoE

• WiFi 802.11n with internal antennas

Product Specification

• Dimensions: 126.34 x 126.09 x 31.65 mm

• Weight: 190 g

• Networking Interfaces:

• (1) SC/APC, GPON WAN

• (4) Gigabit RJ45, Ethernet LAN

• (1) Wi-Fi, 802.11n

• Networking Interface Speeds:

• GPON WAN, ITU G.984: 2.4 Gbps Down, 1.2 Gbps Up

• LAN: 10/100/1000 Mbps

• Wi-Fi: 300 Mbps

• Management Interface: In-Band Ethernet PON

• Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm

• Power Method: DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-)

• Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A

• Max. Power Consumption: 7W

• Supported Voltage Range: 20 to 28V

• Processor Specs: MIPS, 900 MHz

• Memory Information: 256 MB DDR

• Button: (1) Reset

• Operating Temperature: -10 to 45° C

• Operating Humidity: 10 to 90% Noncondensing

• Certifications: CE, FCC, IC
