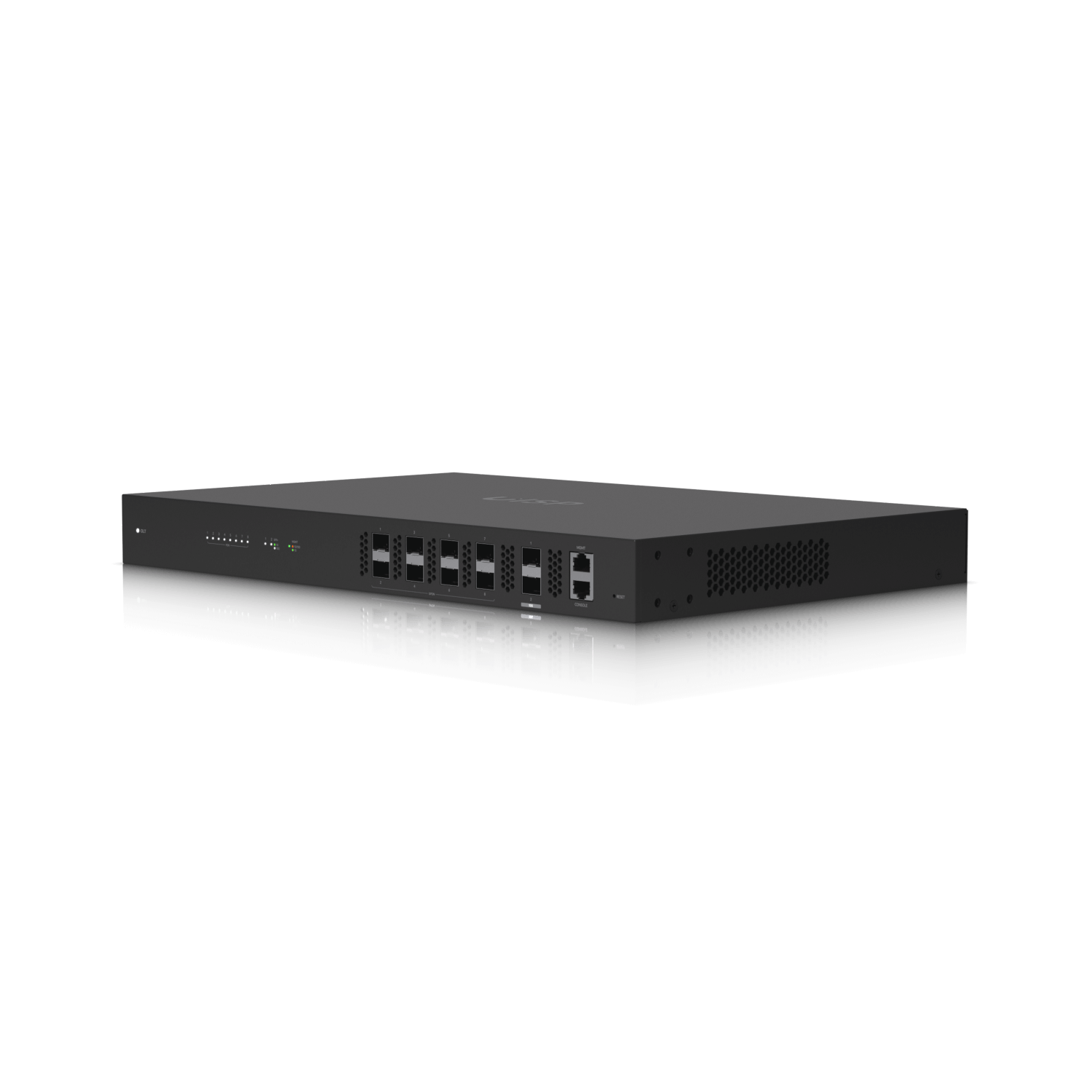

UBIQUITI UFiber OLT 8 - UF-OLT

UFiber  OLT

Features:

• GPON. 2.488 Gbps down / 1.244 Gbps stream capacity

• 1024 Client capacity (8 ports)

• (2) 10G SFP+ uplink ports

• 1U Rack mount

• Power redundancy support

Product Specification:

• Dimensions: 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")

• Weight:

• Without mounting brackets: 4.4 kg (9.7 lb)

• With mount brackets: 4.5 kg (9.9 lb)

• Enclosure material: SGCC steel

• Networking interface:

• (8) GPON OLT SFP ports

• (2) 10 Gbps SFP+ ports

• Management interface:

• (1) Ethernet Out-of-Band

• (1) Ethernet In-Band

• (1) RJ45 Serial Console port

• Bluetooth

• Power method: Universal input, 100—240V AC, 50/60 Hz

• Power supply: (2) Hotswap AC/DC PSU

• Supported voltage range: 100—240V AC

• Max. power consumption: 40W (Excluding SFP modules)

• Button: (1) Factory reset

• Ambient operating temperature: -10 to 45° C (14 to 113° F)

• Ambient operating humidity: 10 to 90% noncondensing

• Certifications: CE, FCC, IC

• Mode: OLT GPON Core and Layer 2 Ethernet switch

• VLAN: 4062 VLANs supported

• Advanced QoS: Support 8 priority queues per user port and traffic classification

• Concurrent clients: 1024 ONUs/ONTs registered

• Ubiquiti specific features: UISP Mobile App

• Operating wavelength

• TX: 1490 nm

• RX: 1310 nm

• Line code: Scrambled NRZ

• Optical interface nominal bit rate:

• Downstream: 2488.32 Mbit/s

• Upstream: 1244.16 Mbit/s

• Physical reach: 20 km
