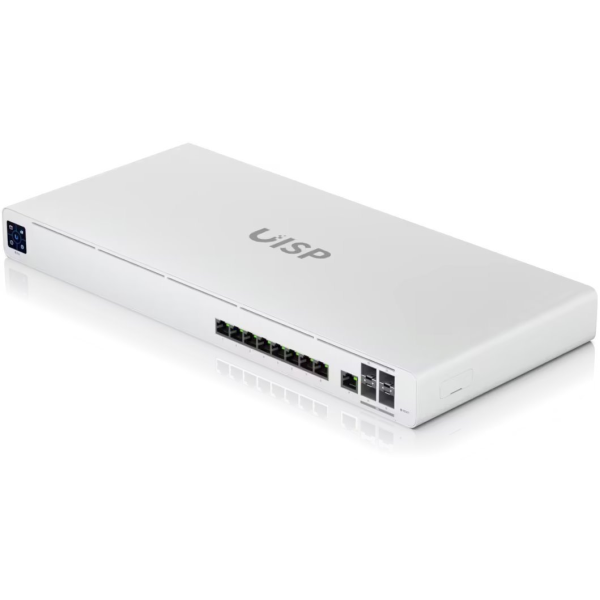

Ubiquiti UISP Router Professional

UISP-R

Gigabit PoE router for MicroPoP applications.

Ideal for wireless ISP (WISP) deployments, the UISP® Router is a fanless PoE router featuring (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option. The UISP Router provides a cost-effective routing solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Router delivers substantial power to every radio in your service network. The UISP Router is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.

Features:

• (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes

• (1) 1G SFP port

• 110W PoE supply when powered with the included AC/DC adapter

• Fanless, thermal cooling for silent operation

• Wall-mountable (kit included)

• Easy, Bluetooth-powered setup via the UISP Mobile app

Product Specification:

• Dimensions: 210.4 x 95 x 29 mm

• Weight: 600 g

• Enclosure Materials: Polycarbonate

• Networking interface:

• (8) 10/100/1000 MbE RJ45 ports

• (1) 1G SFP port

• Management interface:

• Ethernet in-band

• Bluetooth BLE

• Processor: Dual-core 880 MHz, MIPS1004Kc

• Memory: 512 MB DDR3

• Onboard flash storage: 512 MB NAND

• Power method: External AC/DC adapter

• Power supply: 27VDC, 4.4A power adapter (included)

• Supported voltage range: 24 - 28VDC

• Max. power consumption: 10W (excludes PoE output)

• ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV

• Operating temperature: -10 to 50° C (14 to 122° F)

• Operating humidity: 5 to 95% non-condensing

• Certifications: CE, FCC, IC

• PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)

• Max. Passive PoE wattage per port: 30W/27VDC

• Passive PoE voltage range: 27VDC

• System: Status

• RJ45 data ports:

• PoE

• Speed/link/activity

• SFP data port: Link/activity

•
