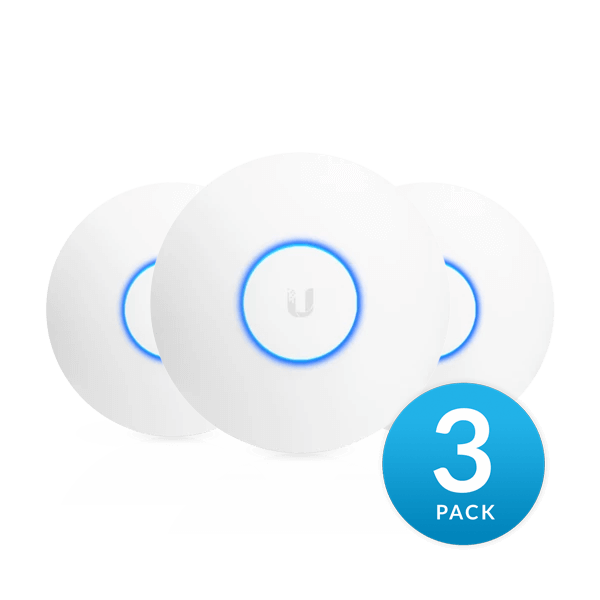

Ubiquiti UniFi Access Point 4x4 MU-MIMO 802.11ac Wave 2 pack 3

UAP-NANOHD-3

Omni-directional 802.11ac Wave 2 Wi-Fi Access Point with 4x4 MU-MIMO technology. The price / performance leader in enterprise Wi-Fi.

The UniFi nanoHD is a compact 4x4 MU-MIMO 802.11ac Wave 2 dual-band access point with an aggregate radio rate of over 2 Gbps and supports over 200 concurrent users. Engineered to take advantage of 802.11ac Wave 2, the UniFi nanoHDprovides powerful multi-user support in an elegant, nano-sized design.

Features:

• Four-Stream 802.11ac Wave 2 Technology

• Simultaneous Dual-Band Radios

• Supports 200+ Concurrent Users

• 5 GHz Band 4x4 Multi-User MIMO with Radio Rate of 1.733 Gbps

• 2.4 GHz Band 2x2 MIMO with Radio Rate of 300 Mbps

• Powered by Gigabit 802.3af PoE+

• Customizable with various skins and mount kits:

• nHD Covers

• nanoHD RetroFit Mount kit

• Recessed nanoHD Ceiling Mount

Product Specification

• Dimensions: 160 x 160 x 32.65 mm

• Weight: 300 g

• Weight With Mounting Kits: 315 g

• Networking Interface: (1) RJ45 GbE

• Buttons: (1) Reset to Defaults

• Power Method: 802.3af

• Power Supply: UniFi Switch (PoE)

• Max. Power Consumption: 10.5W

• Operating Frequency: 2.4 GHz | 5 GHz

• Max. TX Power: 2.4 GHz: 23 dBm | 5 GHz: 26 dBm

• Antenna Gain: 2.4 GHz: 2.8 dBi | 5 GHz: 3 dBi

• MIMO: 2.4 GHz: 2x2 | 5 GHz: 4x4

• Throughput: 2.4GHz: 300 Mbps | 5GHz: 1733 Mbps

• Wi-Fi Standards : 802.11 a/b/g/n/ac/ac-wave2

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• BSSID: 8 per Radio

• Mounting: Wall/Ceiling (Kits Included)

• Operating Temperature: -10 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

NOTE: Doesn’t include PoE injectores
