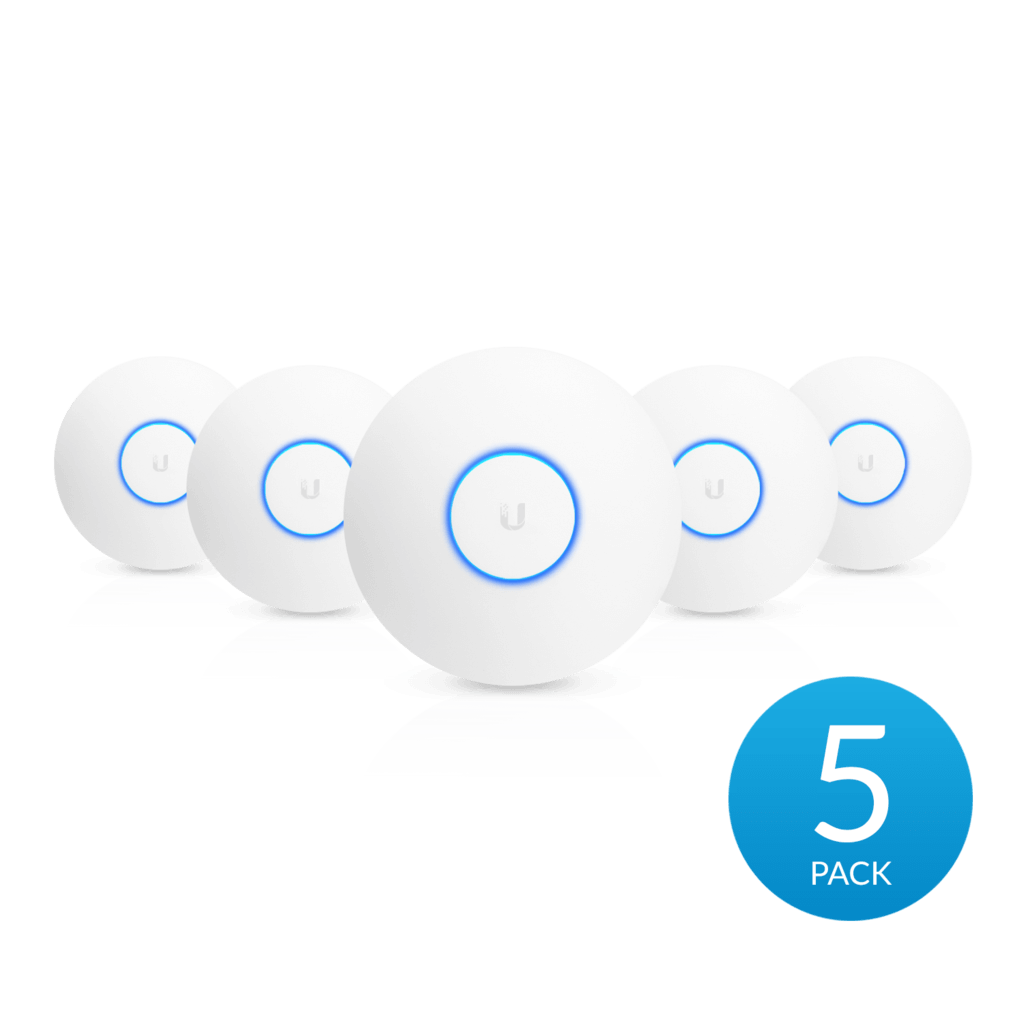

Ubiquiti UniFi Access Point WiFi Long Range AC - Pack 5

UAP-AC-LR-5

Extend your Wi-Fi network with the UniFi® ac LR Access Point, part of the Ubiquiti Networks® UniFi Enterprise WiFi System. The UniFi ac LR Access Point is an indoor, long-range 802.11ac dual-radio access point, capable of speeds up to 1317 Mbps with a range of up to 183 meters.

Features:

• Simultaneous Dual-Band Operation

• 5 GHz Band with Speeds of up to 867 Mbps

• 2.4 GHz Band with Speeds of up to 450 Mbps

• Range up to 183 meters

Product Specification

• Dimensions: 175.7 x 175.7 x 43.2 mm

• Weight: 240 g, With Mounting Kits 315 g

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Buttons: Reset

• Power Method: 802.3af/A PoE / 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Power Supply: 24V, 0.5A Gigabit PoE Adapter

• Power Save: Supported

• Maximum Power Consumption: 6.5W

• Maximum TX Power: 2.4 GHz: 24 dBm / 5 GHz: 22 dBm

• Antennas: (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi

• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• BSSID: Up to 8 per Radio

• Mounting: Wall/Ceiling (Kits Included)

• Operating Temperature: -10 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• WMM: Voice, Video, Best Effort, and Background

• Concurrent Clients: 250+

• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

NOTE: Doesn’t include PoE injectores
