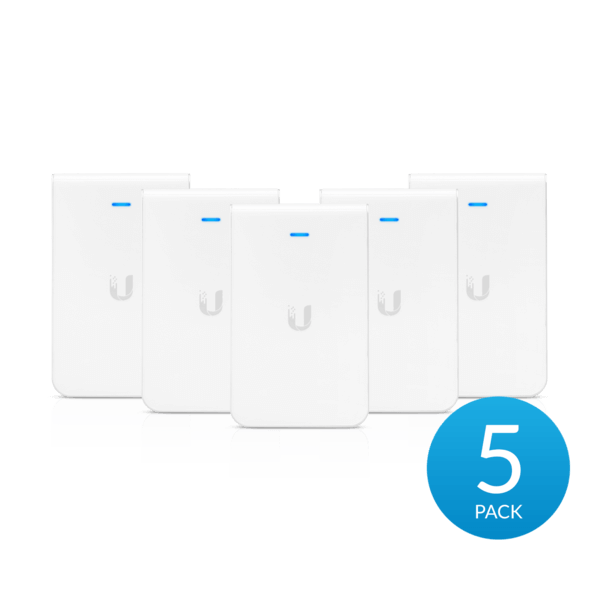

Ubiquiti UniFi In-Wall 2.4 / 5GHz AC Access Point pack 5

UAP-AC-IW-5

Convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports.

Ideal for new or retrofit installations, the UniFi® AC In-Wall is designed to convert an Ethernet wall jack into a dual-band 802.11AC Wi-Fi access point with two Gigabit Ethernet ports. One of the ports provides PoE for powering and connecting an 802.3af device to the network. The UniFi AC In-Wall is capable of wireless speeds of up to 1167 Mbps with a range of up to 100 meters.

Product Specification

• Dimensions: 139.7 x 86.7 x 25.75 mm

• Weight: 200 g

• Networking Interface: (3) 10/100/1000 Ethernet Ports

• Buttons: Reset

• Power Method: 802.3at PoE+ Supported

• Power Supply: UniFi PoE Switch (Not Included)

• Power Save: Supported

• PoE Out: 48V Pass-Through (Pins 1, 2+; 3, 6-)

• Maximum Power Consumption: 7W (with PoE Passthrough 19W - requires 802.3at PoE+ switch)

• Maximum TX Power: 2.4 GHz: 20 dBm | 5 GHz: 20 dBm

• Antennas: (1) Dual-Band Antenna, Single-Polarity, 2.4 GHz: 1 dBi | 5 GHz: 2 dBi

• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• BSSID: Up to 8 per Radio

• Mounting: 1-Gang Electrical Wall Box (Not Included)

• Operating Temperature: -10 to 50° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• WMM: Voice, Video, Best Effort, and Background

• Concurrent Clients: 250+

NOTE: 5-PACK
