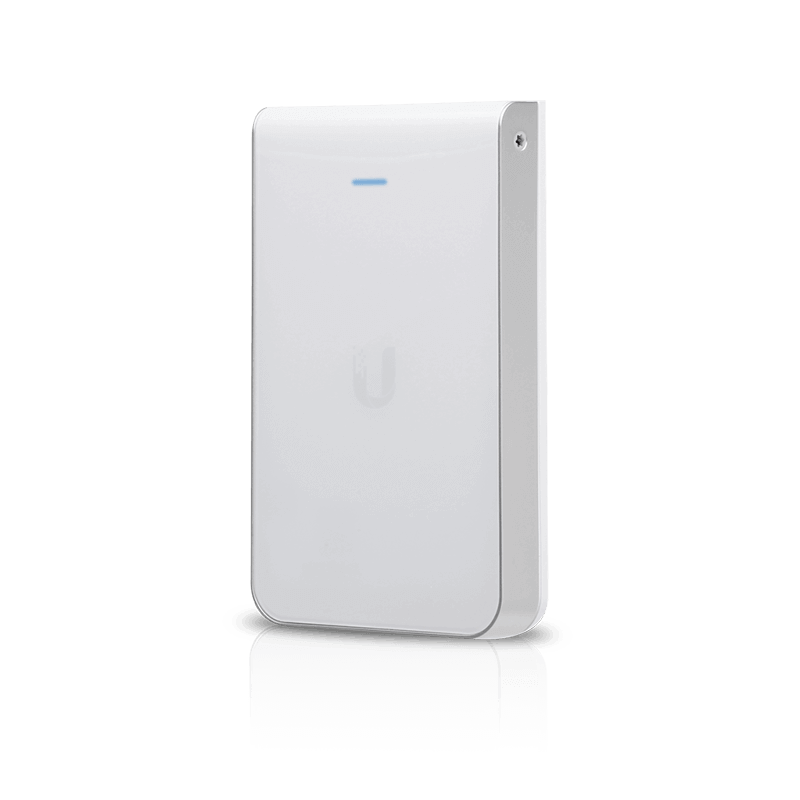

Ubiquiti UniFi In-Wall HD 802.11ac Wave2 MIMO 5GHz

SKU
UAP-IW-HD
196,62 € 159,85 €
EAN
817882025485

Em Stock

Entrega prevista 13 de fevereiro

UniFi In-Wall HD

In-Wall 802.11ac Wave2 MU-MIMO Enterprise Access Point.

Features:

  • 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)

  • 802.3af for base functionality. 802.3at required if using PoE passthrough

  • 1x4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)

Product Specification

  • Dimensions: 139.7 x 86.7 x 25.75 mm

  • Weight: 210 g

  • Networking Interface: (5) 10/100/1000 Ethernet Ports

  • Buttons: Reset

  • Power Method:

    • 802.3af PoE

    • 802.3at PoE+

  • Supported Voltage Range: 44 to 57VDC

  • Power Supply: UniFi Switch (PoE)

  • PoE Out: 48V Passthrough (Pins +1, 2; -3, 6)

  • Power Save: Supported

  • Beamforming: Supported

  • Maximum Power Consumption:11W (with PoE Passthrough 23W (* Requires 802.3at PoE+ switch))

  • TX Power: 2.4 GHz: 23 dBm | 5 GHz: 26 dBm

  • Dual-Band Antennas: (2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each

  • Single-Band Antennas: (2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each

  • Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac/ac-wave2

  • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

  • BSSID: Up to 8 per Radio

  • Mounting: 1-Gang Electrical Wall Box (Not Included)

  • Operating Temperature: -10 to 60° C

  • Operating Humidity: 5 to 95% Noncondensing

  • Certifications: CE, FCC, IC

  • VLAN: 802.1Q

  • Advanced QoS: Per-User Rate Limiting

  • Guest Traffic Isolation: Supported

  • WMM: Voice, Video, Best Effort, and Background

  • Concurrent Clients: 200+
