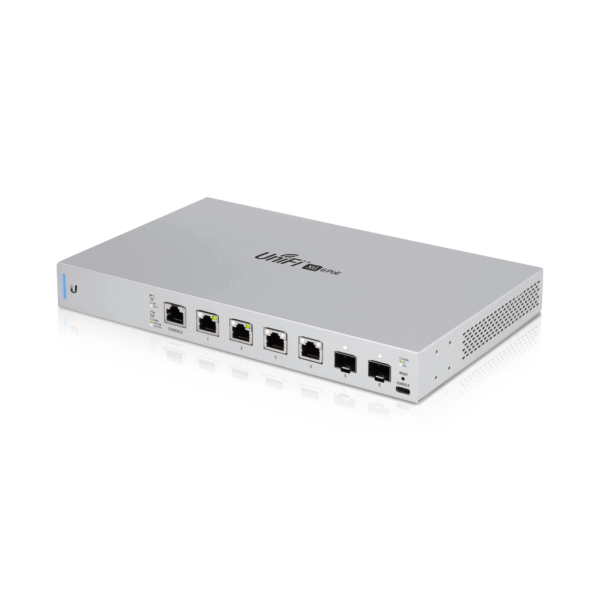

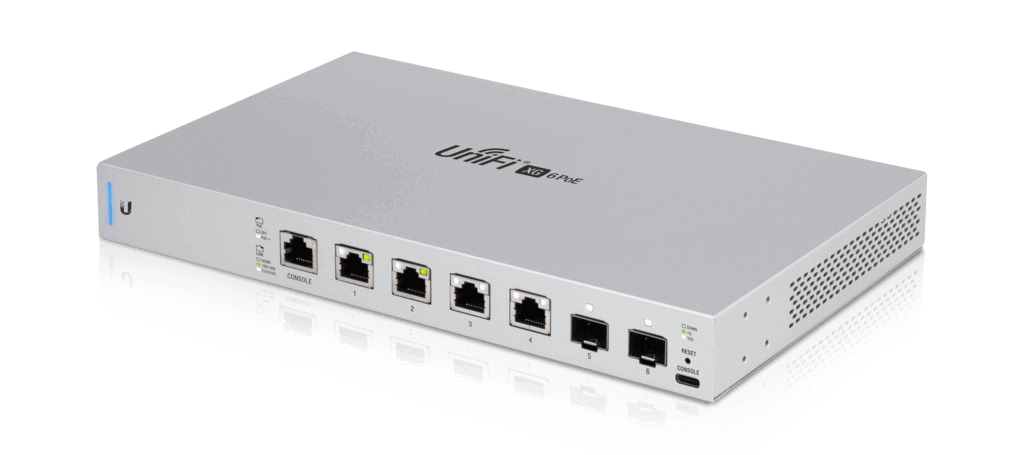

Ubiquiti UniFi Switch 10 Gigabit 6-port 802.3bt

US-XG-6POE

The UniFi® Switch delivers robust performance over its 6 independent switching ports. It offers (4) 10 Gigabit Ethernet ports with auto-sensing 802.3bt PoE++, and (2) SFP+ ports offer optical connectivity.

Product Specification

• Dimensions: 165 x 268.1 x 31.8 mm

• Weight: 1.3 kg

• Interfaces Networking: (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports

• Interfaces Management: Ethernet In-Band (1) RJ45, Serial Port Out-of-Band, (1) USB Type C Port Out-of-Band

• Power Method: 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block

• Power Supply: External AC/DC Adapter (Included) or DC Power Source

• Supported Voltage Range: 44 to 57VDC

• Max. Power Consumption (Excluding PoE Output): 40W

• LEDs: System: Status / RJ45 Data Ports: PoE; Speed/Link/Activity / SFP+ Data Ports: Link/Activity

• ESD/EMP Protection: Air: ± 18 kV, Contact: ± 12 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 45° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-), (Pair B 4 , 5+; 7, 8-)

• Max. 802.3bt Wattage per Port by PSE: 60W

• Voltage Range 802.3af Mode: 44-57V

• Voltage Range 802.3at/bt Mode: 50-57V
