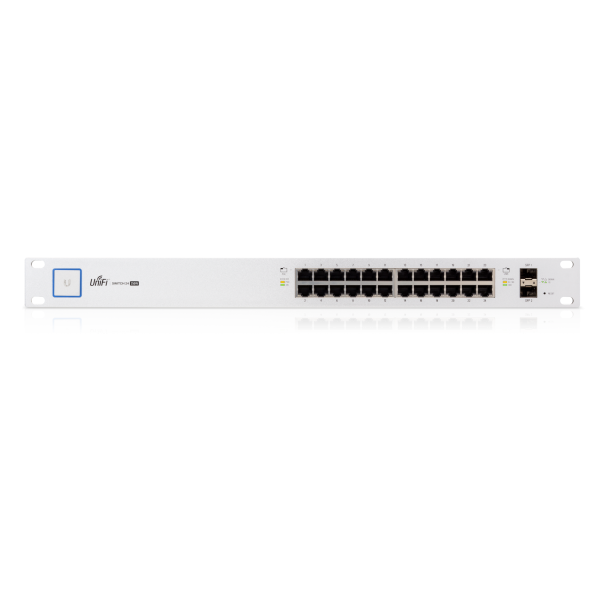

Ubiquiti UniFi Switch 24 Gigabit 500W

US-24-500W

Product Specification:

• Dimensions: 485 x 43.7 x 285.4 mm

• Weight: 4.8 kg

• Networking Interfaces:

• (24) 10/100/1000 Mbps RJ45 Ethernet Ports

• (2) 1 Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

• Total Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• MAC Address Table: 16384

• Maximum Aggregations: 6

• Monitoring Sessions: 1

• Maximum VLANs: 255

• Power Method: 100-240VAC/50-60 Hz, Universal Input

• Power Supply: AC/DC, Internal, 500W DC

• Max. Power Consumption Including PoE Output: 500W

• Max. Power Consumption Excluding PoE Output: 30W

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• PoE Interfaces:

• PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)

• 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

• Max. PoE+ Wattage per Port by PSE: 34.2W

• Voltage Range 802.3at Mode: 50–57V

• Max. Passive PoE Wattage per Port: 17W

• 24V Passive PoE Voltage Range: 20-27V
