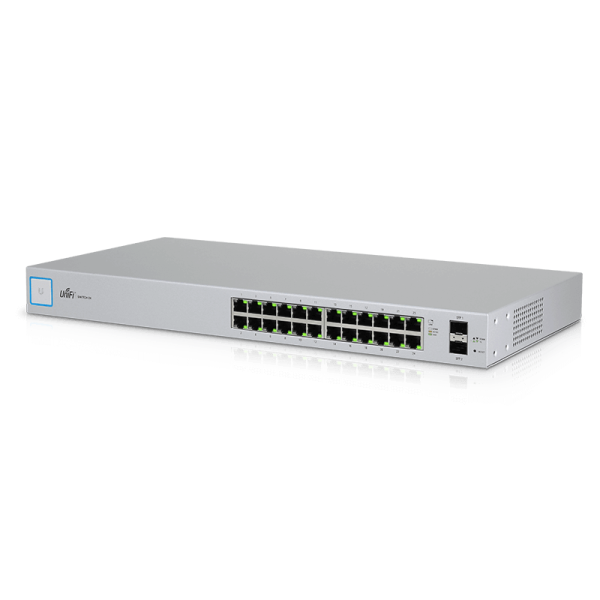

Ubiquiti UniFi Switch 24 Gigabit NO POE

US-24

Managed Gigabit Switch with SFP

Features:

• (24) Gigabit RJ45 Ports

• (2) SFP Ports

• (1) Serial Console Port

• Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Maximum Power Consumption: 25W

• Rack-Mountable

Product Specification

• Dimensions: 443 x 43 x 221 mm

• Weight Rack-Mount Brackets Excluded: 2.51 kg

• Weight Rack-Mount Brackets Included: 2.60 kg

• Networking Interfaces:

• (24) 10/100/1000 Mbps RJ45 Ethernet Ports

• (2) 1 Gbps SFP Ethernet Ports

• Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band

• Total Non-Blocking Throughput: 26 Gbps

• Switching Capacity: 52 Gbps

• Forwarding Rate: 38.69 Mpps

• Power Method: 100-240VAC/50-60 Hz, Universal Input

• Power Supply: AC/DC, Internal, 25W DC

• Max. Power Consumption: 25W

• LEDs per Port: Speed/Link/Activity

• Sound Level (Background noise level: 27.5 dBa):

• Fan Level 0: 1.6 dBr

• Fan Level 1: 9.2 dBr

• ESD/EMP Protection: Air: ± 24 kV Contact: ± 24 kV

• Rack Mount: Yes, 1U High

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
