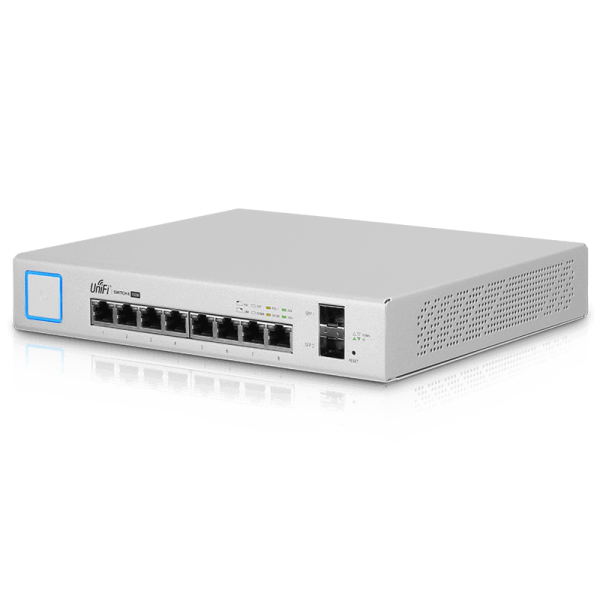

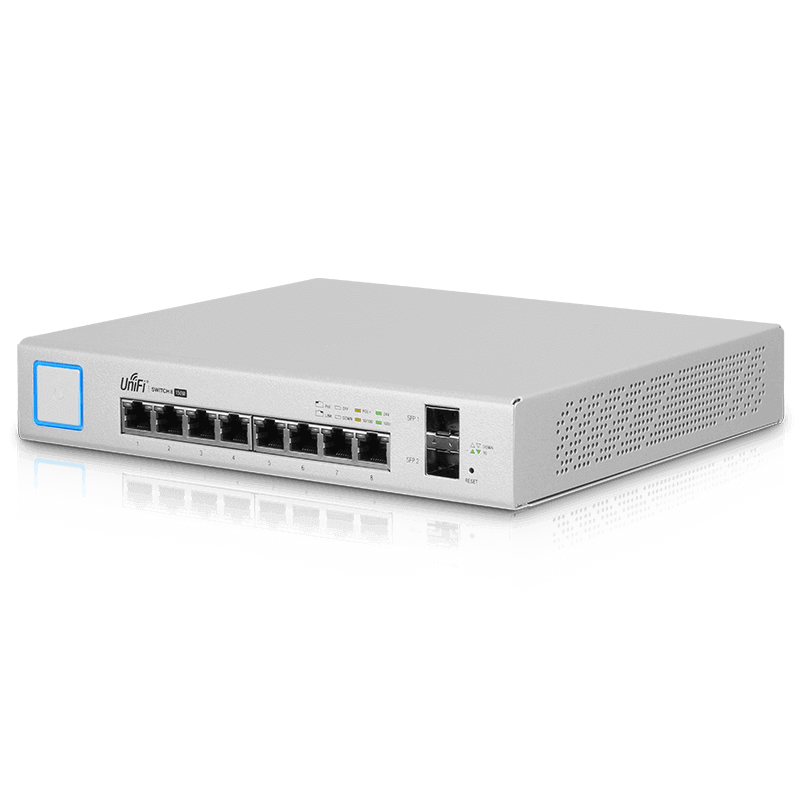

Ubiquiti UniFi Switch 8 Gigabit 150W

US-8-150W

The UniFi® Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.

Product Specification

• Dimensions: 204 x 43 x 235 mm

• Weight: 1.65 kg

• Weight With Mount Brackets:1.73 kg

• Interfaces: (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports

• Management: Ethernet In-Band

• Power Method: 100-240VAC/50-60 Hz, Universal Input

• Power Supply: AC/DC, Internal, 150W DC

• Max. Power Consumption Including PoE Output: 150W

• Max. Power Consumption Excluding PoE Output: 20W

• Processor Specs: ARM Cortex-A9 400 MHz

• Memory Information: 256MB DDR3

• Code Storage: 32 MB NOR Flash

• Line Rate: 10 Gbps, Non-Blocking

• LEDs: System: Status | RJ45 Data Ports: PoE; Link/Speed/Activity | SFP Data Ports: Link/Speed/Activity

• PoE Output (RJ45 Ports): IEEE 802.3at/af 2-Pair (+1, 2; -3, 6) / Passive 24V/0.7A 2-Pair (+4, 5; -7, 8)

• ESD/EMP Protection: ± 24kV Air, ± 24kV Contact

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 45° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
