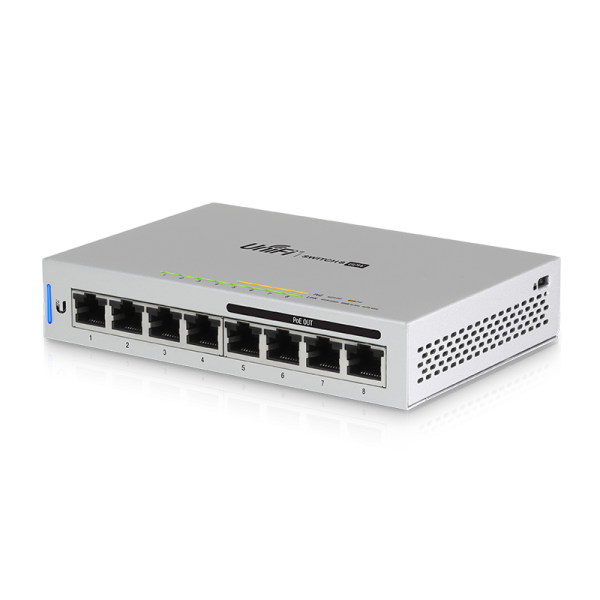

Ubiquiti UniFi Switch 8 Gigabit 60W 4 ports PoE

US-8-60W

8-Port Fully managed 802.3af PoE Gigabit switch, delivering robust performance and intelligent switching for enterprise networks.

The US-8-60W offers the flexibility of (8) Gigabit Ethernet ports with (4) auto-sensing PoE ports to power your UniFi access points and other PoE devices. The US-8-60W supports up to 8 Gbps total, non-blocking line rate, and up to 15W output per PoE port.

Product Specification

• Dimensions: 148 x 99.5 x 30.7 mm

• Weight: 432 g

• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports

• PoE Interfaces: (4) Ports 5, 6, 7, 8: IEEE 802.3af

• Power Method: 48VDC, Max. 2A

• Power Supply: External AC/DC Adapter: 48V, 1.25A

• Max. Power Consumption: 12W (Excluding PoE Output)

• Max. PoE Wattage per Port: 15.4W

• PoE Output (Ports 5 to 8): IEEE 802.3af 2-Pair (Pins 1, 2+; 3, 6-)

• Line Rate: 8 Gbps, Non-Blocking

• LEDs: System: Status / RJ45 Data Ports: PoE; Speed/Link/Activity

• ESD/EMP Protection: ± 24kV Air, ± 24kV Contact

• Operating Temperature: -5 to 45° C (23 to 113° F)

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
