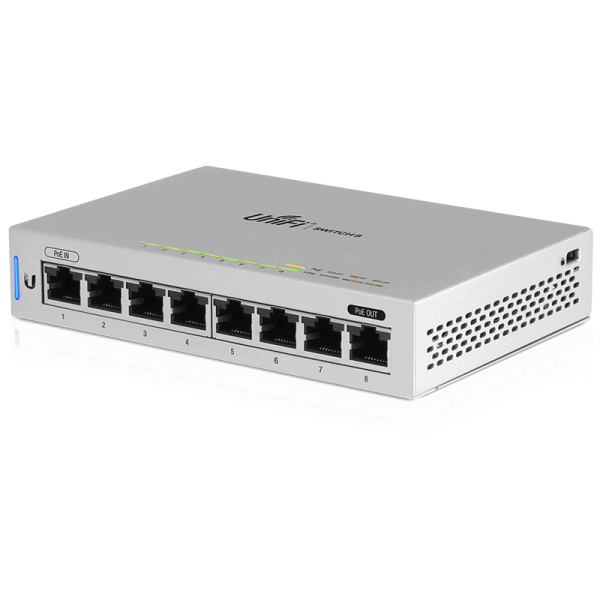

Ubiquiti UniFi Switch 8 Gigabit

US-8

8-Port Fully Managed Gigabit Switch. Includes 25W External Power Supply

The US-8 is a compact, fully managed Gigabit switch, delivering robust performance and intelligent switching for enterprise networks.

Product Specification

• Dimensions: 148 x 99.5 x 30.7 mm

• Weight: 432 g

• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports

• PoE In (Port 1): PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-) PoE Mode 2: Passive 48V (Pins 4, 5+; 7, 8-)

• PoE Out (Port 8): PoE Mode 1: 48V (Pins 1, 2+; 3, 6-)

• PoE Out (Port 8): PoE Mode 2: Passive 48V (2-Pair Pins 4, 5+; 7, 8-)

• PoE Out (Port 8): DC Input Mode: 48VDC (Pins 1, 2+; 3, 6-)

• Power Method (1) DC 48V, Max. 1.25A (1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-)

• Power Supply: External AC/DC Adapter: 48V, 0.5A

• Max. Power Consumption: 12W (Excluding PoE Output)

• Max. PoE Wattage per Port:

• PoE Mode 1: 12W @ 802.3at

• PoE Mode 2: 12W @ 48V

• DC Input Mode: 12W @ 48V

• Passive PoE Voltage Range: Depends on Power Source

• Line Rate: 8 Gbps, Non-Blocking

• LEDs: System: Status | RJ45 Data Ports: PoE; Link/Speed/Activity

• ESD/EMP Protection: ± 24kV Air, ± 24kV Contact

• Operating Temperature: -5 to 45° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC
