Ubiquiti UniFi Switch Enterprise XG 24

USW-ENTERPRISEXG-24

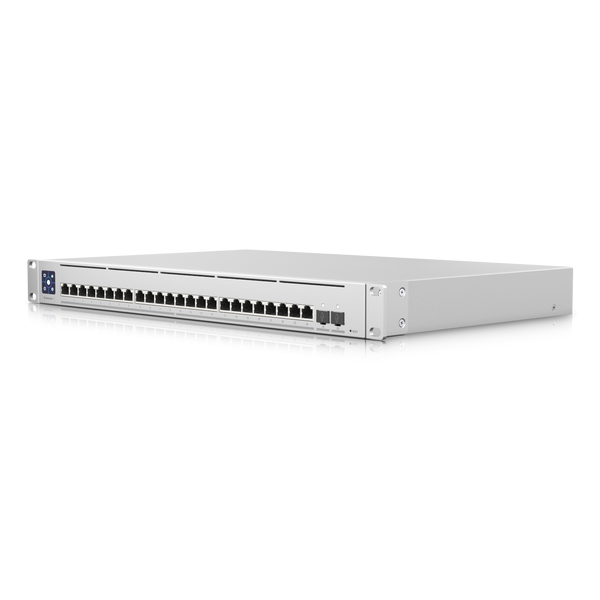

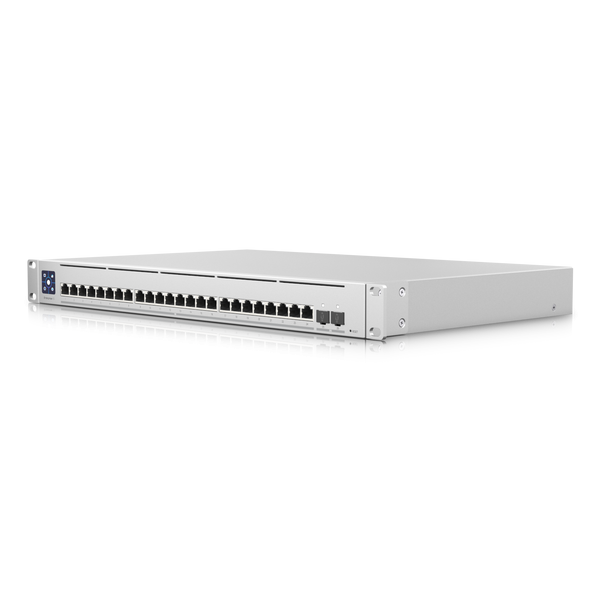

The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (1) 1.3" LCM color touchscreen with AR switch management

• (24) 10GbE RJ45 ports

• (2) 25G SFP28 ports

• (1) USP RPS DC input

• Layer 3 switching features

• Single-row RJ45 port layout for easy patch panel cable management

Managed with the UniFi Network application: Version 6.1.67 and later

Product Specification:

• Dimensions: 442 x 44 x 285 mm

• Weight Without Mount: 4.47 kg

• With Mount: 4.57 kg

• Enclosure Materials: SGCC Steel

• Mount Material: SGCC Steel

• Total Non-Blocking Throughput: 290 Gbps

• Switching Capacity: 580 Gbps

• Forwarding Rate: 431.52 Mpps

• Max. Power Consumption: 100W

• Power Method:

• (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz

• (1) USP-RPS DC input: 11.5VDC, 8.7A

• Power Supply: AC/DC, Internal, 100W

• Management Interface: Ethernet In-Band

• Networking Interfaces: (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet

• SFP28 Interfaces: (2) 1/10/25 Gbps SFP28*

• Services: SMB Layer 3 Gigabit Ethernet Switch

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Button: Factory Reset

• LEDs: White: Link or Activity

• Operating Temperature: -5 to 40° C (23 to 104° F)

• Operating Humidity: 10 - 95% Noncondensing

• Certifications: CE, FCC, IC
