Ubiquiti UniFi Switch Flex XG

USW-Flex-XG

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

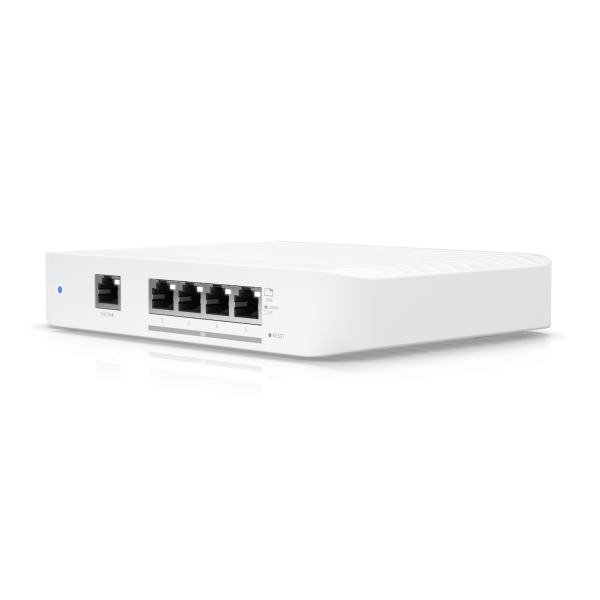

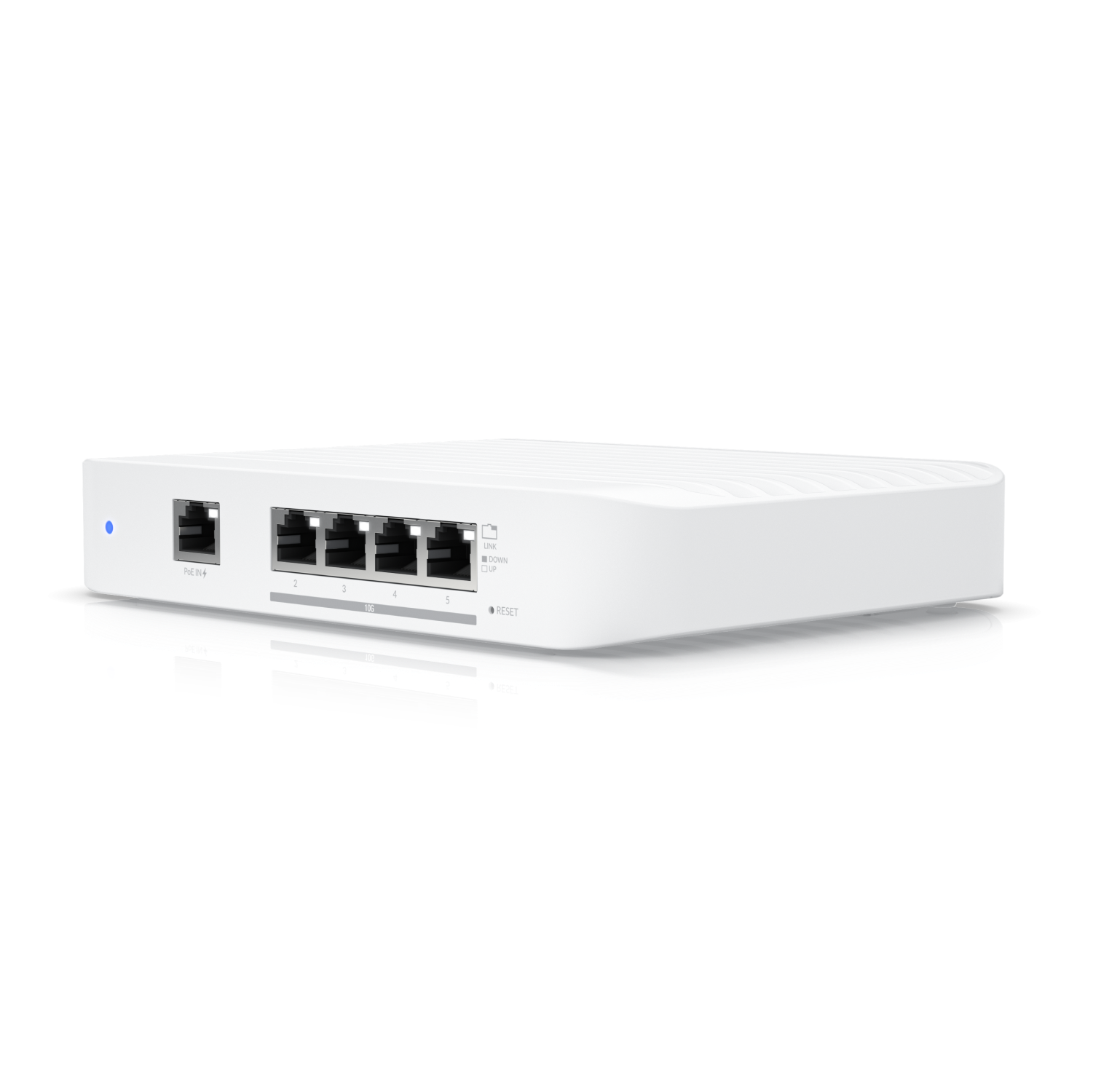

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (1) GbE, 802.3at PoE+ RJ45 input

• (4) 10GbE RJ45 ports

• Compact, slim housing

• Can be powered with a 5V, 5A USB-C adapter**

*Do not stack other hardware on the USW Flex XG.

**Only single-unit packages include the 5V, 5A USB-C power adapter.

Managed with the UniFi Network application: Version 6.1.67 and later

Product Specification:

• Dimensions: 135 x 185 x 32 mm

• Weight: 1.2 kg

• Enclosure Material: Polycarbonate

• Total Non-Blocking Throughput: 41 Gbps

• Switching Capacity: 82 Gbps

• Forwarding Rate: 61.012 Mpps

• Max Power Consumption: 25W

• Power Method:

• (1) 802.3at PoE, 50-57VDC, 25W

• (1) USB Type-C, 5VDC, 5A

• Power Supply:

• 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)

• AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)

• Supported Voltage Range: 90 to 264VAC (Adapter)

• Management Interface: Ethernet In-Band

• Networking Interfaces:

• (1) 10/100/1000 Mbps RJ45 Ethernet

• (4) 1/2.5/5/10 Gbps RJ45 Ethernet

• Services: SMB Layer 2 Gigabit Ethernet Switch

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Button: Factory Reset

• Operating Temperature: -5 to 45° C (23 to 113° F)

• Operating Humidity: 10 - 90% Noncondensing

• Certifications: CE, FCC, IC
