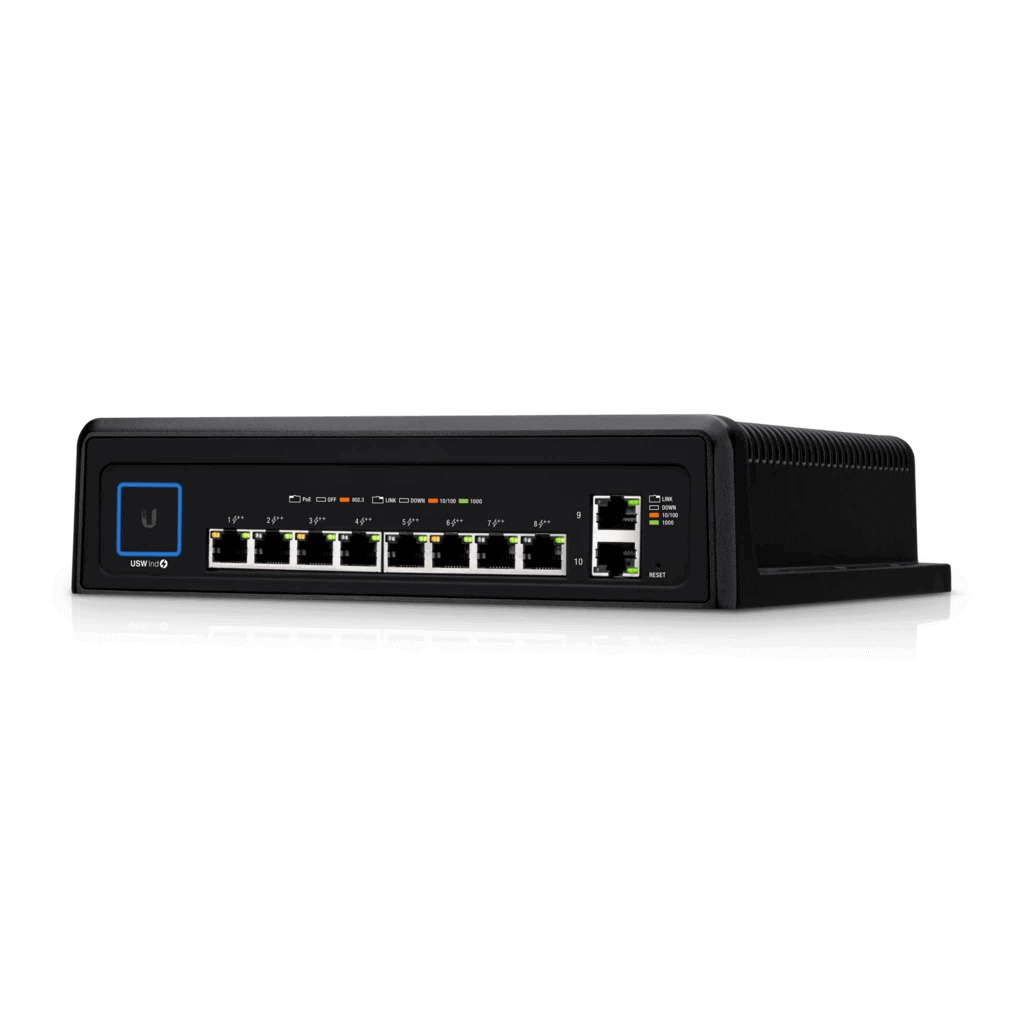

Ubiquiti UniFi Switch Industrial 10Port High-Power 802.3bt PoE++

USW-INDUSTRIAL

The USW-Industrial is a managed Gigabit Layer 2 switch with auto-sensing, high-power 802.3bt PoE++ support. It has 10 RJ45 ports total, 8 of which offer PoE++ (up to 60W per port), ideal for powering devices like UniFi LED Panels, cameras, and APs. Featuring a ruggedized industrial design, the fanless USW-Industrial is plenum-rated* and can be installed in a horizontal or vertical orientation in plenum spaces. Its die-cast aluminum enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature variations.

*Plenum rated cabling is required for use in plenum spaces.

Product Specification:

• Dimensions: 254 x 235 x 60 mm

• Weight: 3.85 kg

• Enclosure Characteristics: Die-Cast Aluminum (ADC12) with Black Powder Coated Finish

• Interfaces Networking: Networking: (8) 10/100/1000 802.3bt PoE RJ45 Ports, (2) 10/100/1000 RJ45 Ports

• Interfaces Management: Ethernet In-Band

• Total Non-Blocking Throughput: 10 Gbps

• Switching Capacity: 20 Gbps

• Forwarding Rate: 14.88 Mpps

• Power Method: 100 - 240 VAC, 50/60 Hz Universal Input

• Power Supply: AC/DC, Internal, 450W DC

• Supported Voltage Range: AC Input: 100 to 240VAC, Max. 6A

• Max. Power Consumption (Excluding PoE Output): 20W

• LEDs: System: Status / RJ45 Data Ports: PoE; Speed/Link/Activity / SFP+ Data Ports: Link/Activity

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: Internal AC/DC @ 450W: -40 to 50% C

• Operating Temperature: Internal AC/DC @ 240W: -40 to 60° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: FCC, IC

• PoE Interfaces: PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

• Max. PoE Wattage per Port by PSE: 802.3bt 60W

• Voltage Range 802.3 PoE Mode: 50-57V

• Max. Total PoE Power Budget: 430W
