Ubiquiti UniFi Switch USW-24-POE Gen2

USW-24-POE Gen 2

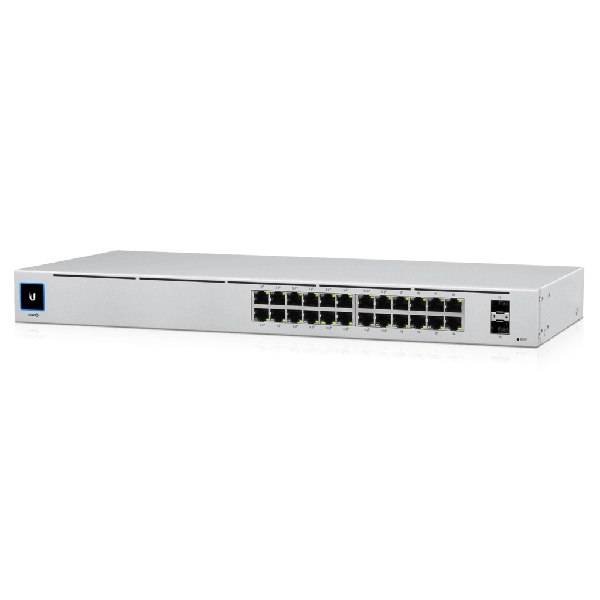

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Product Specification:

• Dimensions: 424.4 x 200 x 43.7 mm

• Weight: 3.00 kg

• Weight With Rackmount Brackets: 3.09 kg

• Interfaces Networking: Networking: (24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports

• Interfaces Management: Ethernet In-Band

• Power Method: 100-240VAC/50-60 Hz, Universal Input

• Power Supply: AC/DC, Internal, 120W

• Supported Voltage Range: 100 to 240VAC

• Max. Power Consumption (Excluding PoE Output): 25W

• LEDs: System: Status / RJ45 Data Ports: PoE; Speed/Link/Activity / SFP Data Ports: Link/Activity

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 40° C

• Operating Humidity: 10 to 90% Noncondensing

• Certifications: CE, FCC, IC

• PoE Interfaces: Ports 1-16 : POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)

• Max. PoE Wattage per Port by PSE: 802.3at: 32W

• Voltage Range 802.3af Mode: 44-57V

• Voltage Range 802.3at Mode: 50-57V
