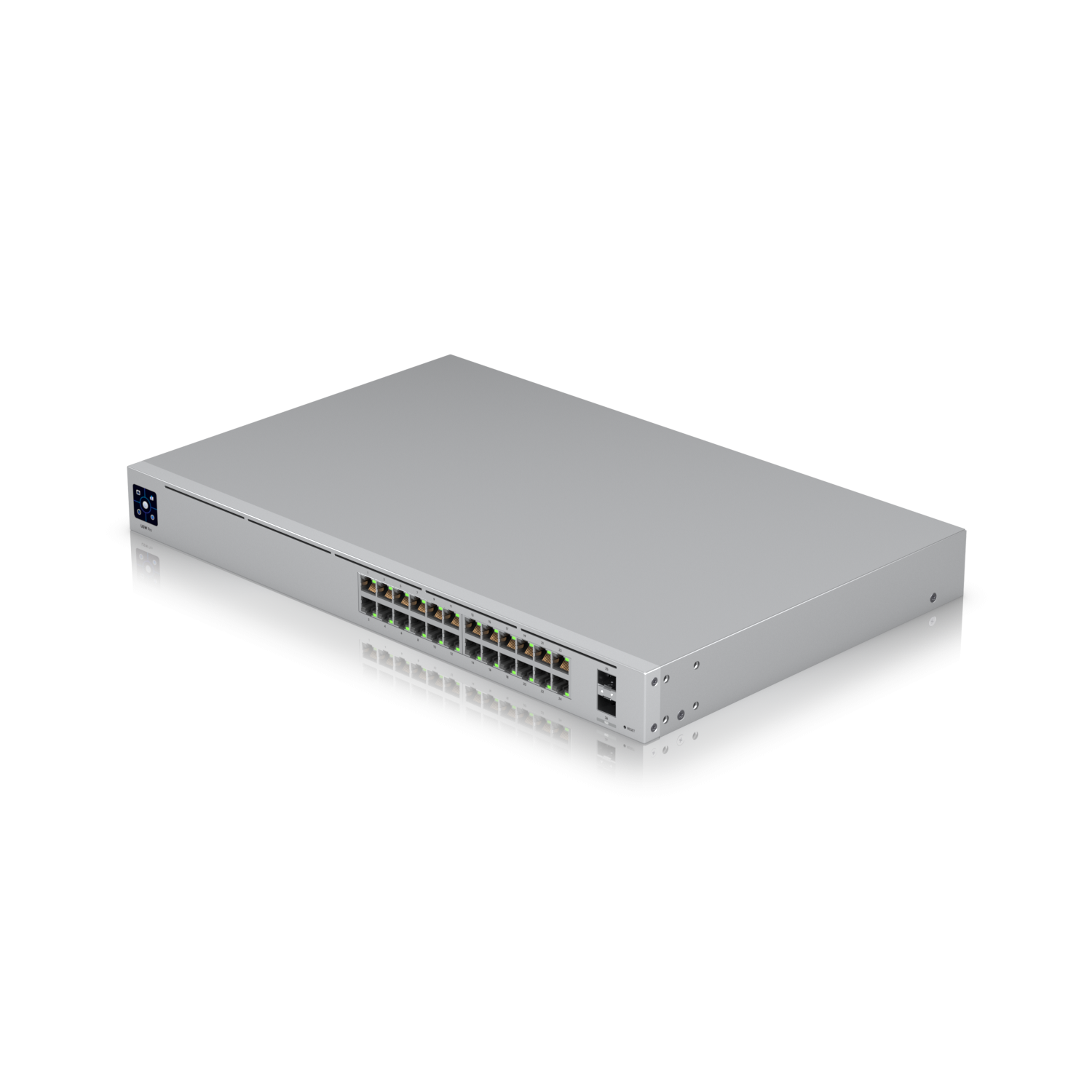

Ubiquiti UniFi Switch USW-Pro-24 Gen2

USW-PRO-24

The Switch Pro 24 (USW Pro 24) is a fully managed switch with (24) GbE RJ45 ports and (2) 10G SFP+ ports. The USW Pro 24 combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. The USW Pro 24 is an ideal aggregation and access layer switch for any UniFi system. It combines innovative, near-silent cooling capability with SmartPower RPS (USP RPS) power redundancy. The switch can also be monitored and configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Features:

• (1) 1.3" LCM color touchscreen with AR switch management

• (24) GbE RJ45 ports

• (2) 10G SFP+ ports

• (1) USP RPS DC input

• Near-silent cooling

• Layer 3 switching features

• Managed by UniFi Network Controller: Version 5.12.11 and later

Product Specification:

• Dimensions: 442.4 x 285.4 x 43.7 mm

• Weight: 3.50 kg

• Weight With Rackmount Brackets: 3.59 kg

• Interfaces Networking: Networking: (24) 10/100/1000 RJ45 Ports,(2) 1/10G SFP+ Ethernet Ports

• Interfaces Management: Ethernet In-Band

• Total Non-Blocking Throughput: 44 Gbps

• Switching Capacity: 88 Gbps

• Forwarding Rate: 65.472 Mpps

• Power Supply: AC/DC, Internal, 36W

• Supported Voltage Range: 100 to 240VAC

• Max. Power Consumption: 30W

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 45° C

• Operating Humidity: 10 to 90% Noncondensing

• Certifications: CE, FCC, IC
