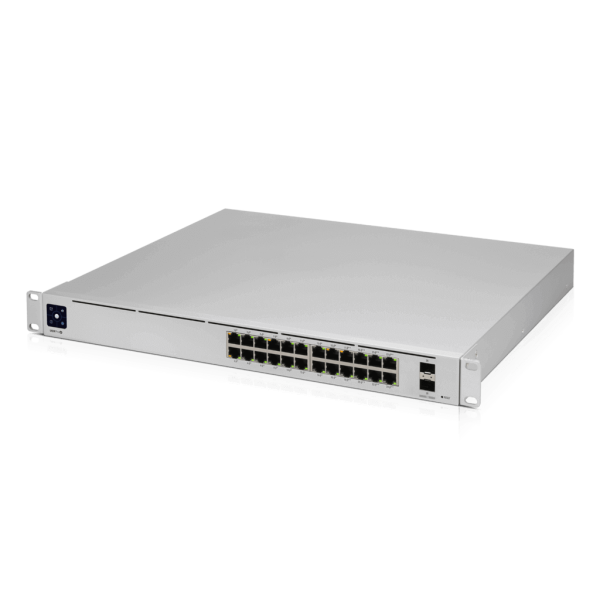

Ubiquiti UniFi Switch USW-Pro-24-POE Gen2

USW-Pro-24-POE Gen 2

The USW-Pro-24-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Sixteen PoE+ and eight PoE++ RJ45 ethernet ports have total 400W PoE budget, and two SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

Note: Layer3 will be included in later software release

Features:

• (16) Gigabit RJ45 ports with 802.3af/at

• (8) Gigabit RJ45 ports with 802.3bt

• (2) 1/10G SFP+ ports

• 1U Rackmountable (hardware included)

Product Specification:

• Dimensions: 442.4 x 285.4 x 43.7 mm

• Weight: 4.30 kg

• Weight With Rackmount Brackets: 4.39 kg

• Interfaces Networking: (24) 10/100/1000 RJ45 Ports, (2) 1/10G SFP+ Ethernet Ports

• Interfaces Management: Ethernet In-Band

• Power Method: Universal Input: 100-240VAC/50-60 Hz, USP RPS DC Input: 52VDC, 7.69A; 11.5VDC, 2.61A

• Power Supply: AC/DC, Internal, 450W

• Supported Voltage Range: 100 to 240VAC

• Max. Power Consumption (Excluding PoE Output): 50W

• LEDs: System: Status / RJ45 Data Ports: PoE; Speed/Link/Activity / SFP+ Data Ports: Link/Activity

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 40° C

• Operating Humidity: 10 to 90% Noncondensing

• Certifications: CE, FCC, IC

• PoE Interfaces: Ports 1-16: POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) / Ports 17-24: 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)

• Max. PoE Wattage per Port by PSE: 802.3at: 32W

• Max. PoE Wattage per Port by PSE: 802.3bt: 64W

• Voltage Range 802.3af Mode: 44-57V

• Voltage Range 802.3at/bt Mode: 50-57V
