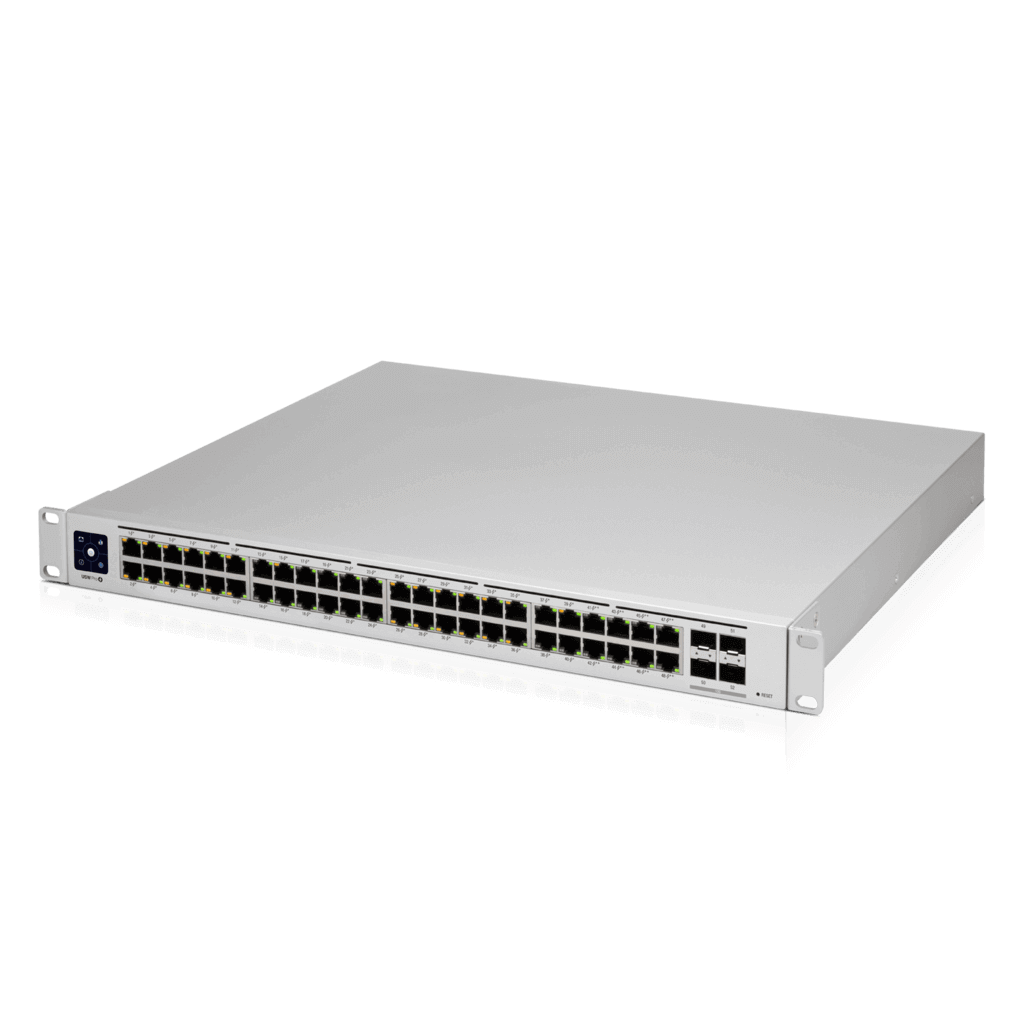

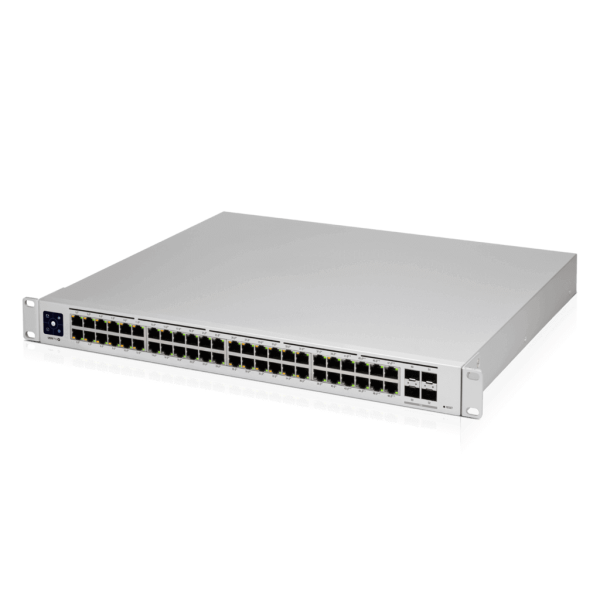

Ubiquiti UniFi Switch USW-Pro-48

USW-PRO-48

UniFi Switch Pro 48 is a fully managed Layer 3 switch with (48) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability.The UniFi Switch Pro 48 features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server.

The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features:

• (48) Gigabit RJ45 ports

• (4) 10G SFP+ ports

• Layer 2 and Layer 3* features

• UniFi SmartPower RPS DC input

• Near-silent cooling

• 1.3" touchscreen display

• Managed by UniFi Network Controller

Product Specification:

• Dimensions: 442.4 x 285.4 x 43.7 mm

• Weight: 4.00 kg

• Weight With Rackmount Brackets: 4.09 kg

• Interfaces Networking: Networking: (48) 10/100/1000 RJ45 Ports,(4) 1/10G SFP+ Ethernet Ports Ethernet In-Band

• Total Non-Blocking Throughput: 88 Gbps

• Switching Capacity: 176 Gbps

• Forwarding Rate: 130.944 Mpps

• Power Supply: AC/DC, Internal, 60W

• Voltage Range: 100 to 240VAC

• Max Power Consumption: 60W

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Shock and Vibration: ETSI300-019-1.4 Standard

• Operating Temperature: -5 to 45° C (23 to 113° F)

• Operating Humidity: 10 - 90% Noncondensing

• Certifications: CE, FCC, IC
