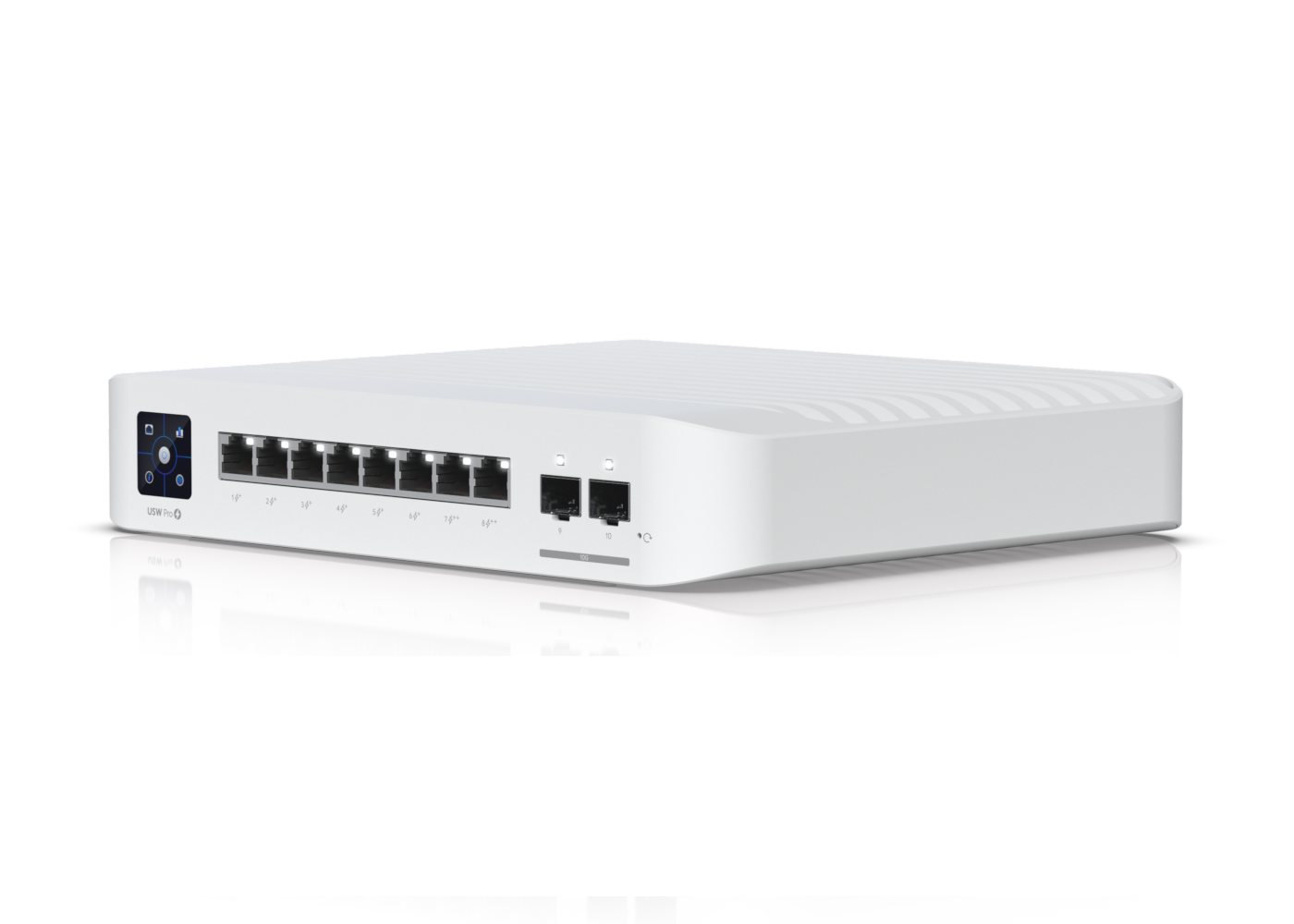

Ubiquiti USW-Pro-8-PoE

SKU

USW-PRO-8-POE

324,17 € 263,55 €

Switch Layer 3 de 8 portas com saída PoE+ e PoE++

Sem stock

Contacte-nos para previsão

Mechanical
Dimensions	200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure materials	Plastic, metal
Mount material	Plastic
Hardware
Management interface	Ethernet In-Band
Networking interface	(8) GbE RJ45 ports (2) 10 Gbps SFP+ ports
PoE interface	(6) PoE/PoE+ (Pins 1, 2+; 3, 6-) (2) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	28 Gbps
Switching capacity	56 Gbps
Power method	Universal input, 100240V AC, max. 2A
Power supply	AC/DC, internal
Supported voltage range	100240V AC
Max. power consumption	30W (Excluding PoE output)
Total available PoE	120W
Max. PoE wattage per port by PSE	PoE: 15W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 4457V PoE+: 5057V PoE++: 5057V
LCM display	(1) 1.3" touchscreen
LEDs	RJ45 ports: link/activity
Button	Factory reset
Operating temperature	-5 to 45° C (23 to 113° F)
Operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Application Requirements
UniFi Network	Version 7.5.176 and later
