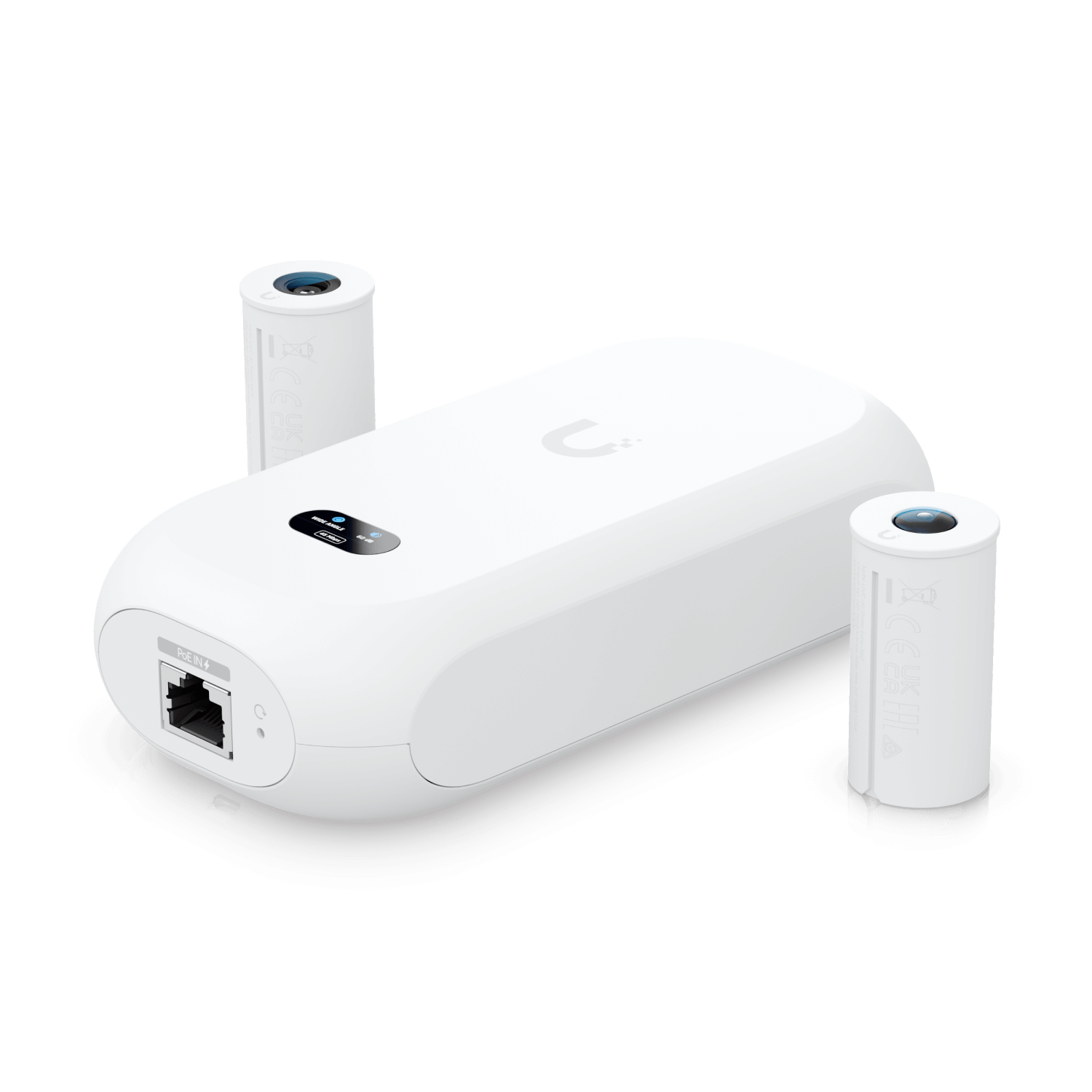

Ubiquiti UVC-AI-THETA, AI Theta

UVC-AI-THETA

The world’s first security camera system designed for interior design professionals.

• 4K (8MP/6MP) video resolution

• Flat wall mounting with discreet form factor

• Remote processing unit with status display

• Advanced AI: Detect people, read license plates, and more

• Connect and power the camera and processing unit using PoE

Product Specification

• Dimensions: UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)

• UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”)

• Weight UVC-AI-Theta-Hub: 330 g (11.6 oz)

• UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)

• UVC-AI-Theta-Lens/360: 15 g (0.5 oz)

• UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)

• Enclosure materials:

• UVC-AI-Theta-Hub: aluminum alloy

• UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

• UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

• Mount materials :

• UVC-AI-Theta-Hub: aluminum alloy

• UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate

• UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate

• Cable jacket enclosure dimensions: 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")

• Cable jacket enclosure material: PVC

• Cable length: 1 m (3.3 ft)

• Cable diameter: 3.7 mm (0.15")

• Cable jacket material: Woven fabric

• Cable weight: 18 g (0.63 oz)

• Cable connector type: Theta proprietary

• Sensor UVC-AI-Theta-Lens: 8MP CMOS sensor

• UVC-AI-Theta-Lens-360: 12MP CMOS sensor

• Lens: Fixed focal length

• View angle:

• UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2°

• UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180°

• Video compression: H.264

• Resolution:

• UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3)

• UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1)

• Max. frame rate:

• UVC-AI-Theta-Lens: 24 FPS

• UVC-AI-Theta-Lens-360: 20 FPS

• Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

• Processor: Quad-core Arm® Cortex®-A53 based chip

• Networking interface: GbE RJ45 port

• Max. power consumption: 12.5W

• Power method: PoE

• Power supply: 5V DC, 0.5A

• Supported voltage range: 37—57V DC

• Output power: 5V DC, 1A per port

• LED: R/G/B/W

• Button: Factory reset

• Mounting: Wall, ceiling mount

• Operating temperature: -20 to 40° C (-4 to 104o F)

• Operating humidity: 10 to 90% noncondensing

• Certifications: FCC, IC, CE

• Microphone: Yes (Can be disabled)

• Speaker: Yes

• Power supply: 5V DC, 0.9A

• Web application: UniFi Protect: Version 2.7.18 and later

• Mobile app: UniFi Protect iOS™ and Android™: Version 1.11.0 and later

•
