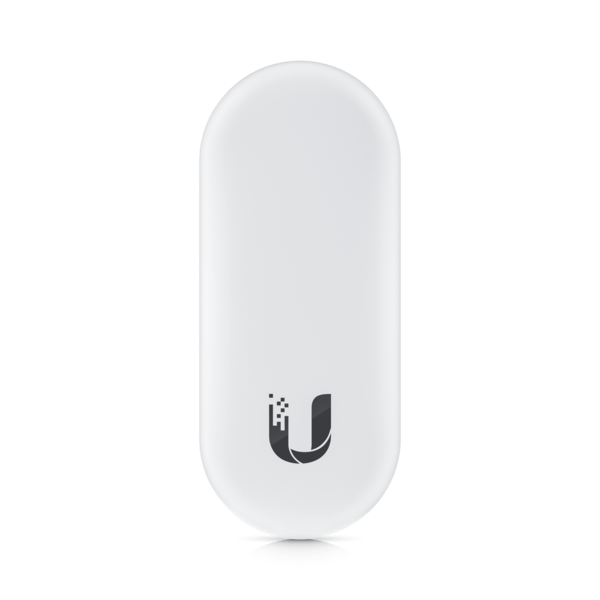

UniFi Access Reader Lite

UA-LITE

The UniFi Access Reader Lite has been designed for convenient use and secure access. The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app

Features:

• Elegantly designed NFC and Bluetooth reader

• 802.3af PoE powered by UniFi Access Hub

• Advanced NFC credentials, including MIFARE DESFire

• Built-in security element chip

• For the best NFC security, use with our UA-Card

• Mobile access with app (future software release)

UA-Lite will be shipped in silver color

Note: UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access

Product Specification:

UA-LITE

• Dimensions: 94.91 x 40.00 x 31.10 mm

• Networking Interface: 65 g

• Mounting Options: Wall-Mount

• Networking Interface: 10/100 Mbps Ethernet

• Max. Power Consumption: 6W

• Power Method: 802.3af PoE

• Button: (1) Reset

• IP Rating: IP54

• LEDs: Blue, White

• Connectivity: Ethernet, BLE 4.1

• Operating Temperature: -40 to 40° C

• Operating Humidity: 5 to 90% Noncondensing

• Certifications: CE, FCC, IC

NFC

• Frequency: 13.56 MHz

• Read Range: <30 mm

• Standards: ISO 14443A, 14443B, 15693

• Technology:

• NFC Tag 1, 2, 3, 4, 5

• MIFARE Classic

• MIFARE Plus

• MIFARE Ultralight

• MIFARE DESFire EV1/EV2
