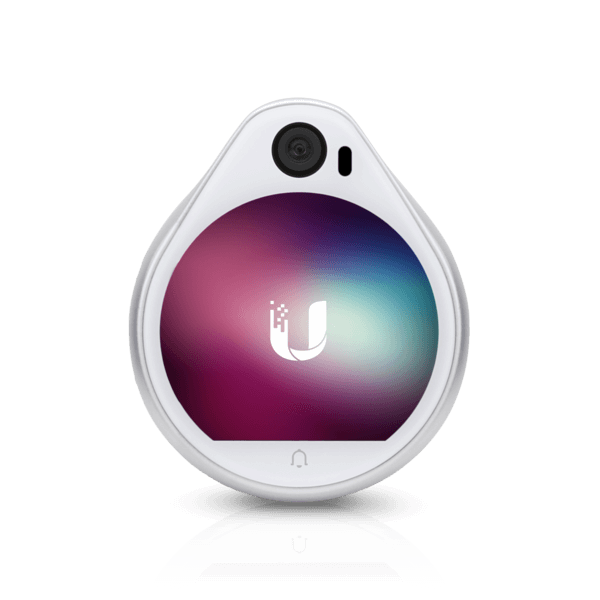

UniFi Access Reader Pro

UA-Pro

The UniFi Access Reader Pro has been designed for superior guest experience and employee convenience. The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app.

Features:

• Premium NFC and Bluetooth reader

• 802.3af PoE powered by UniFi Access Hub

• Advanced NFC credentials, including MIFARE DESFire

• High resolution touchscreen and integrated camera

• Built-in security element chip

• For the best NFC security, use with our UA-Card

• Mobile access with app (future software release)

• Intercom call functionality to request entry (future software release)

Note: UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access

Product Specification:

UA-PRO

• UA-PRO

• Dimensions: 73.40 x 62.28 x 26.55 mm

• Networking Interface: 85 g

• Mounting Options: Wall-Mount or Alloy Clamp Holder

• Networking Interface: 10/100 Mbps Ethernet

• Camera Viewing Angle: 147.5° ± 3°

• Max. Power Consumption: 8.3W

• Power Method: 802.3af PoE

• Button: (1) Reset

• IP Rating: IP54

• LEDs: Blue, White

• Connectivity: Ethernet, BLE 4.2

• Operating Temperature: -10 to 40° C

• Operating Humidity: 5 to 90% Noncondensing

• Certifications: CE, FCC, IC

•

NFC

• Frequency: 13.56 MHz

• Read Range: <30 mm

• Standards: ISO 14443A, 14443B, 15693

• Technology:

• NFC Tag 1, 2, 3, 4, 5

• MIFARE Classic

• MIFARE Plus

• MIFARE Ultralight

• MIFARE DESFire EV1/EV2
