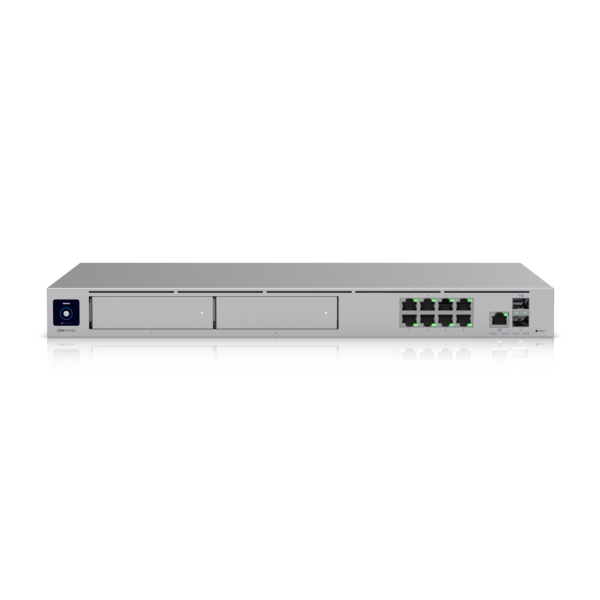

UniFi Dream Machine Pro Max

UniFi Dream Machine Pro Max

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

Features:

• Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE

• Includes full UniFi application suite for device management

• 5 Gbps routing with IDS/IPS

• (1) 10G SFP+*, (8) GbE RJ45 LAN ports

• (1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports

• (2) 3.5" NVR HDD bays with RAID data protection

• Built-in 128 GB SSD for NVR detection recordings

• 1.3" touchscreen

Product Specification

• Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")

• Weight: 4.7 kg (10.4 lb)

• Enclosure material: Aluminium CNC, SGCC steel

• Mount material: SGCC steel

• Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz

• System memory: 8 GB DDR4

• On-board storage: 32 GB eMMC

• Integrated: 128 GB SSD

• Management interface Ethernet

• Bluetooth

• Networking interface:

• LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port

• WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port

• IDS/IPS throughput: 5 Gbps*

• Power method:

• (1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz

• (1) USP-RPS DC input,12V DC, 4.6A

• Power supply: AC/DC, internal, 100W

• Supported voltage range: 100—240V AC

• Max. power consumption: 60W

• ESD/EMP protection: Air: ± 15kV, contact: ± 8kV

• LCM display: (1) 1.3" touchscreen

• Button: Factory reset

• Ambient operating temperature: -10° to 40° C (14° to 104° F)

• Ambient operating humidity: 5 to 95% noncondensing

• Certifications: CE, FCC, IC

*Measured with iPerf3.

Gateway Features

• Performance:

• Redundant WAN with failover and load balancing

• WiFi QoS with UniFi APs

• Application, domain, and country-based QoS

• Application and device type identification

• Additional internet failover with LTE Backup

• Internet quality and outage reporting

• Next-generation security:

• Application-aware firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• VLAN/subnet-based traffic segmentation

• Full stateful firewall

• Advanced networking:

• License-free SD-WAN

• WireGuard, L2TP and OpenVPN server

• OpenVPN client

• OpenVPN and IPsec site-to-site VPN

• One-click Teleport and Identity VPN

• Policy-based WAN and VPN routing

• DHCP relay

• Customizable DHCP server

• IGMP proxy

• IPv6 ISP support
