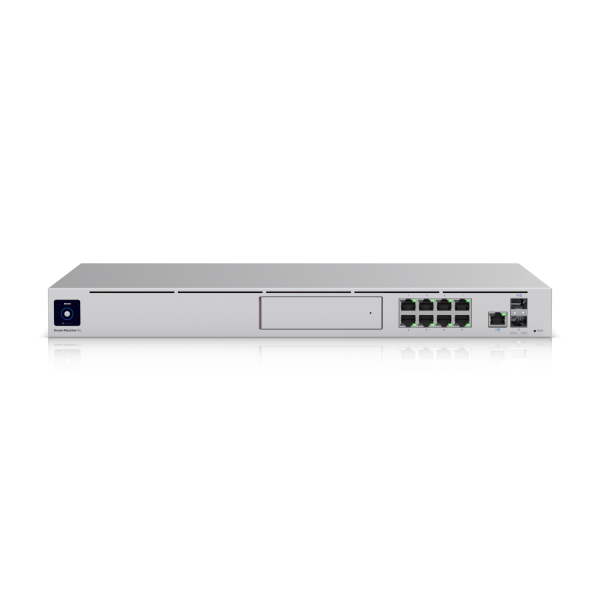

UniFi Dream Machine Pro

UniFi Dream Machine Pro

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.

Features:

• All-in-one 1U rack appliance for small to medium sized businesses

• Combines new UniFi OS with 8-port switch and security gateway

• UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support

• 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN

• Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities

• Powered by fast 1.7 GHz quad-core processor

Product Specification

• Dimensions: 442.4 x 43.7 x 285.6 mm

• Weight: 3.90 kg

• Weight With Brackets: 3.99 kg

• Interfaces:

• (8) 10/100/1000 RJ45 LAN Ports

• (1) 10/100/1000 RJ45 WAN Port

• (1) 1/10G SFP+ LAN Port

• (1) 1/10G SFP+ WAN Port

• Management Interfaces:

• Ethernet In-Band

• (1) Bluetooth BLE

• IDS/IPS Throughput: 3.5 Gbps *

• Processor: Quad ARM Cortex-A57 Core at 1.7 GHz

• System Memory: 4 GB DDR4

• On-Board Flash Storage: 16 GB eMMC

• Operating Temperature: -10° to 40° C

• Operating Humidity: 5 to 95% Noncondensing

• Max. Power Consumption: 33W

• Voltage Range: 100 to 240VAC

• Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz

• Redundant Power: (1) RPS DC Input

• Power Supply: Internal 50W/12V

• ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV

• Certifications

• CE, FCC, IC

* Measured with iPerf3.
