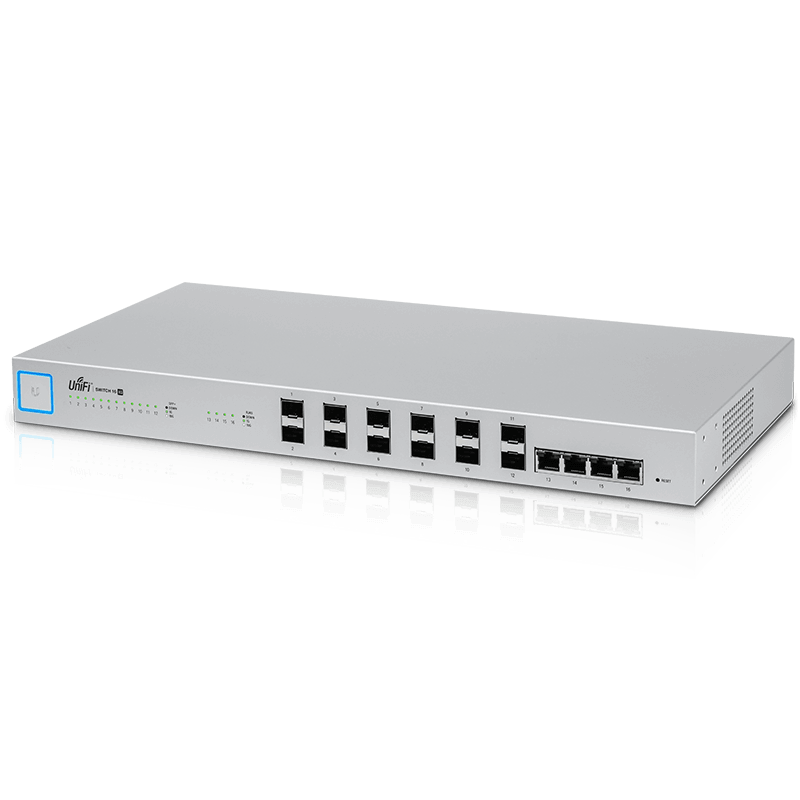

Unifi Switch 16 10G 16-Port Managed Aggregation Switch

SKU
US-16-XG
580,06 € 471,59 €
The switch comes equipped with twelve 10G SFP+ ports, four 10G RJ-45 Ethernet ports, and a single RJ-45 serial console port.
EAN
810354026010

Sem stock

Contacte-nos para previsão

US-16-XG

The US-16-XG is a fully managed, 16-port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.

Product Specification

  • Dimensions: 443 x 221 x 43 mm

  • Weight Without Mount Brackets: 2.62 kg

  • Weight With Mount Brackets: 2.71 kg

  • Enclosure Characteristics: SGCC Steel

  • Total Non-Blocking Throughput: 160 Gbps

  • Switching Capacity: 320 Gbps

  • Forwarding Rate: 238.10 Mpps

  • Max. DC Power Consumption: 36W (Excludes SFP/SFP+ Modules)

  • Power Method:

    • AC: 100-240VAC/50-60 Hz, Universal Input

    • DC: 56W, 57 to 20V, with 48/24VDC Terminal Block

  • Supported Voltage Range:

    • AC: 100 to 240VAC

    • DC: 57 to 20VDC

  • Power Supply: AC/DC, Internal, 56W DC

  • LEDs Per Data Port: Speed/Link/Activity

  • Sound Level (Background noise level: 27.5 dBa)

    • Fan Level 0: 1.0 dBr

    • Fan Level 1: 10.7 dBr

    • Fan Level 2: 12.2 dBr

    • Fan Level 3: 12.8 dBr

  • Networking Interfaces:

    • (12) 1/10 Gbps SFP+ Ethernet Ports

    • (4) 1/10 Gbps RJ45 Ethernet Ports

  • Management Interface:

    • (1) RJ45 Serial Port Out-of-Band

    • Ethernet Ports In-Band

  • Certifications: CE, FCC, IC

  • Rack Mount: Yes, 1U High

  • ESD/EMP Protection: Air: ± 24 kV Contact: ± 24 kV

  • Operating Temperature: -5 to 40° C

  • Operating Humidity: 5 to 95% Noncondensing

  • Shock and Vibration: ETSI300-019-1.4 Standard
