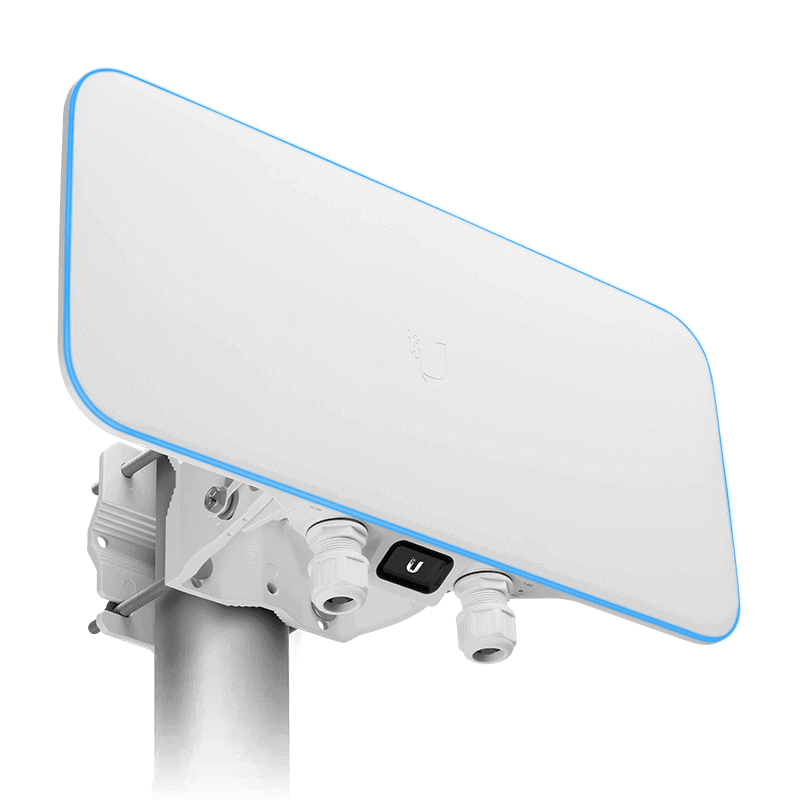

UniFi WiFi BaseStation XG Quad-Radio 802.11ac Wave 2

UWB-XG

Expand your 10-Gigabit network with the UniFi Wireless BaseStation XG, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System.

Features:

• 10Gigabit Ethernet Support

• 4x4 MU-MIMO Quad-Radio: (3) client, 1 Security

• Triple 5 GHz 802.11ac Wave 2 Radios

• 5.2 Gbps Combined Radio Rate in 5 GHz

• Dedicated Security Radio with Persistent Threat Management

• 1,500 Client Association Limit

• 802.3bt Power Injector Included

Product Specification

• Dimensions (Without Mount): 471.1 x 257.5 x 94.3 mm

• Weight (Without Mount): 3.2 kg

• Networking Interface: (1) 10/100/1000 RJ45 Ethernet Port, (1) 1/10 Gbps ICM Ethernet Port

• Button: Reset

• LED: RGB, Software-Controllable

• Power Method: 802.3bt PoE

• Power Supply: 50VDC, 1.2A Gigabit PoE

• Power Save: Supported

• Beamforming: Supported

• Max. Power Consumption: 31W

• Supported Voltage Range: 44-57VDC

• Max. TX Power: 25 dBm

• MIMO: (3) 4 x 4

• Operating Frequency: 5 GHz

• Antenna: Integrated Dual-Mode Antenna Array

• Antenna Gain Small Cell Large Cell: 15 dBi 10 dBi

• Antenna Beamwidth Small Cell Large Cell: 50° 90°

• Wi-Fi Standards : 802.11 a/n/r/k/v/ac/ac-wave2

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

• Mounting: VESA-Compatible Mount, Pole/Wall (Brackets Included)

• Operating Temperature: -40 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Dust and Water Resistance: IP67

• Certifications: CE, FCC, IC

• VLAN: 802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• WMM: Voice, Video, Best Effort, and Background

• Concurrent Clients: 1500

• Standard: Data Rates

• 802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

• 802.11ac: 58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)

• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
