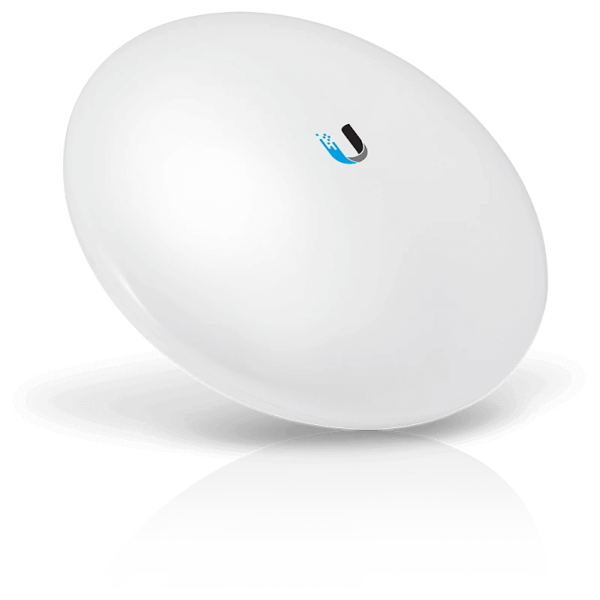

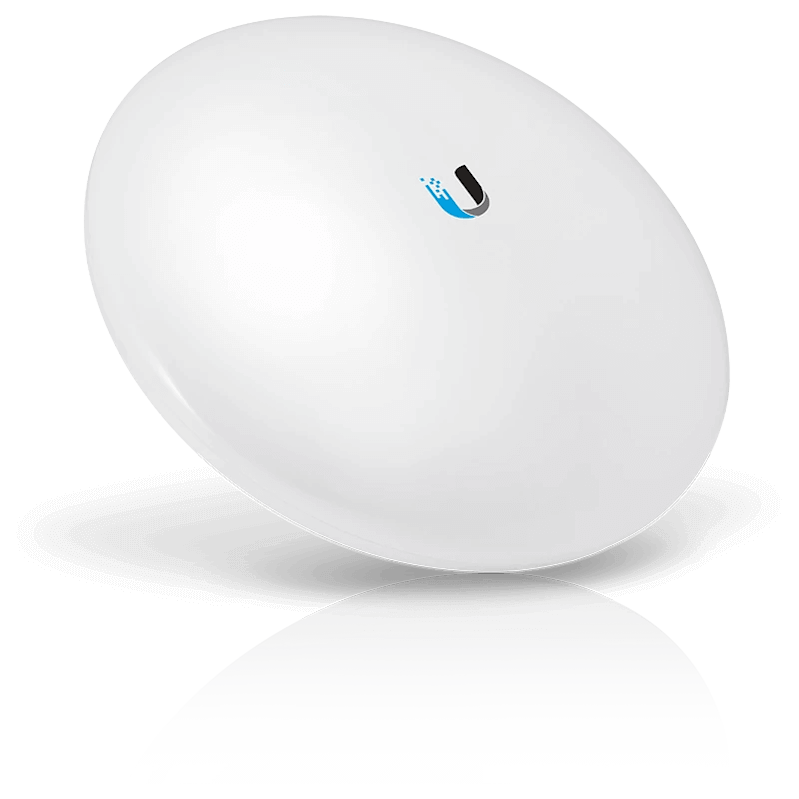

NanoBeam Gen 2 5AC 5GHz 19dBi

NanoBeam 5AC Gen2

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

Features:

• New antenna

• Improved radio design

• Improved surge protection

• Management WiFi Radio/UNMS mobile app

• AirOS 8

Product Specification

• Dimensions (Mount Included): 189 x 189 x 125 mm

• Weight (Mount Included): 0.530 kg

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Max. Power Consumption: 8.5W

• Gain: 19 dBi

• Networking Interface:

• (2) 10/100/1000 Ethernet Ports

• Wi-Fi for Management

• Processor Specs: Atheros MIPS 74Kc, 720 MHz

• Memory: 128 MB DDR2, 8 MB Flash

• LEDs: Power, Ethernet, (4) Signal Strength

• Signal Strength LEDs, Software-Adjustable to Correspond to Custom RSSI Levels

• Max. VSWR, 1.5:1

• Channel Sizes:

• PtP Mode: 10/20/30/40/50/60/80 MHz

• PtMP Mode: 10/20/30/40 MHz

• Polarization: Dual Linear

• Enclosure: Outdoor UV Stabilized Plastic

• Mounting: Pole-Mount (Kit Included), Wall-Mount

• Wind Loading: 45.4 N @ 200 km/h

• Wind Survivability: 200 km/h (125 mph)

• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

• Operating Temperature: -40 to 80° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• RoHS Compliance: Yes

• Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

• Vibration Test: IEC 68-2-6

• Temperature Shock Test: IEC 68-2-14

• UV Test: IEC 68-2-5 at 40° C, Equivalent: ETS 300 019-1-4

• Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
