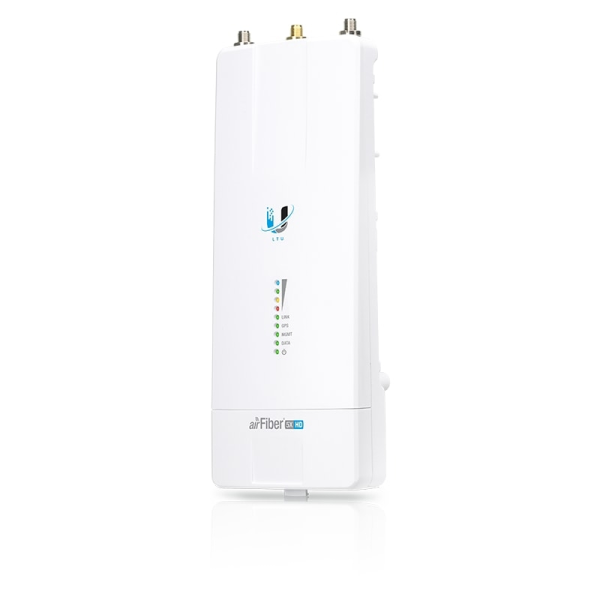

Ubiquiti AirFiber 5.1-5.8GHz, 500Mbps+ Backhaul

Ubiquiti’s airFiber 5XHD PTP LTU is equipped with custom silicon and its proprietary radio architecture is designed specifically for long‑distance, outdoor wireless applications.

The core communications processing engine surpasses all of the limitations inherent to generic Wi‑Fi chips to provide superior performance, long‑range capability, DFS flexibility, higher constellations, and power output, along with better receive sensitivity.





Product Specifications

• Dimensions: 8.82 x 3.23 x 1.89"
• Weight: 12.3 oz
• RF Connectors: (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
• GPS Antenna: External, Magnetic Base
• Power Supply: 24V, 1A Gigabit PoE Adapter
• Power Method: Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
• Max. Power Configuration: 6-12 W
• Supported voltage consumption: 24 - 50 V DC
• Mounting: airFiber X mount (Rocket mount compatible) GPS pole mount (included)
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• IP rating: IP67
• Certifications: CE, FCC, IC
• Networking Interface: Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port

System

• Processor: airFiber LTU IC
• Maximum Throughput: 1 Gbps
• Maximum Range: 100 km
• Packets per Second: 2+ million
• Encryption: WPA2-PSK (AES)
• OS: airFiber-airOS 8
• Wireless Modes: AP/CPE
