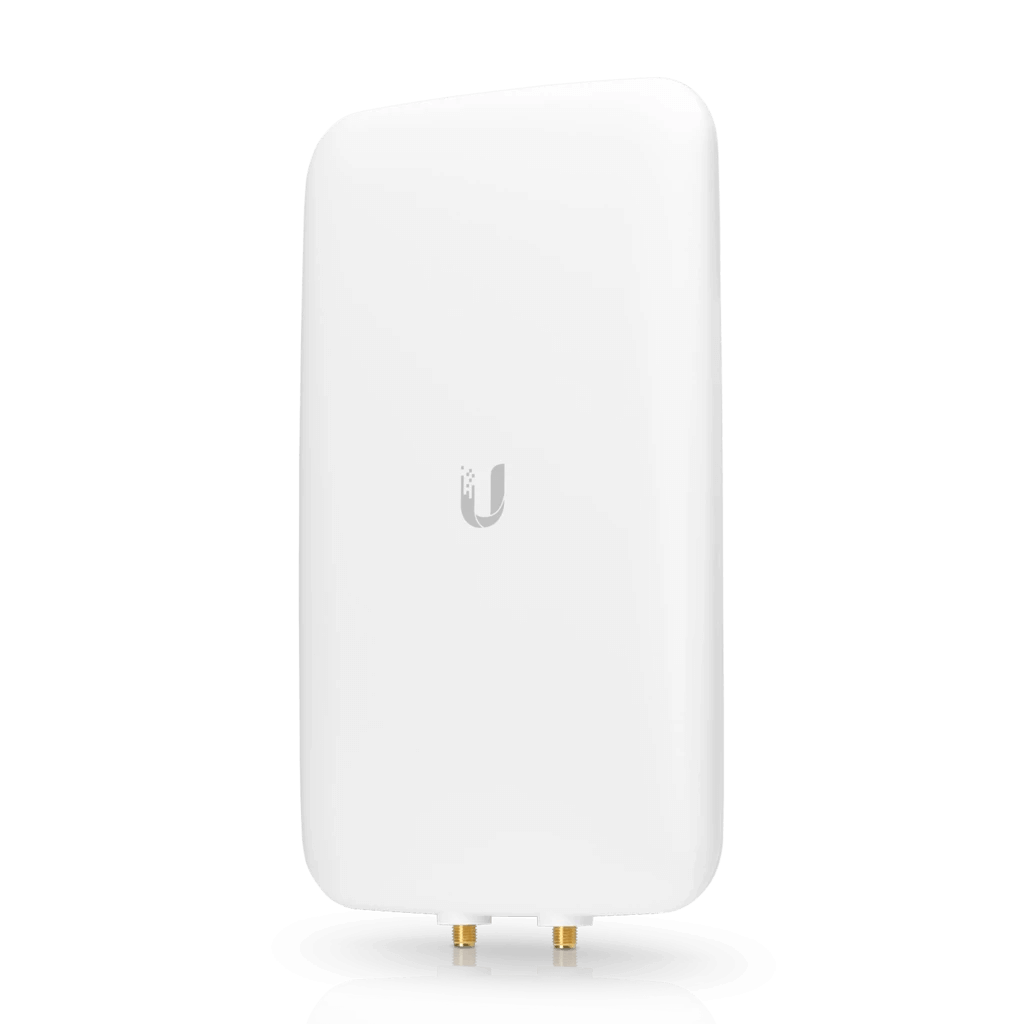

Ubiquiti Directional Dual-Band Antenna for UAP-AC-M

UMA-D

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping.

Features:

• Dual-Band, Dual-Polarity Optimized for 802.11ac

• High Efficiency Directional Radiation Pattern

• Three-Axis Ball Joint Mount for Precise Aiming

Product Specification

• Dimensions: 201.3 x 128.0 x 32.5 mm

• Weight with Mount: 480 g

• Weight without Mount: 400 g

• Enclosure: Outdoor UV Stabilized Plastic

• RF Connections: (2) RP-SMA

• Supported Frequency Range: 2.4 - 2.5 GHz, 5.1 - 5.9 GHz

• HPOL Beamwidth: 2.4 GHz: 90°, 5 GHz: 45°

• VPOL Beamwidth: 2.4 GHz: 90°, 5 GHz: 45°

• Elevation Beamwidth: 2.4 GHz: 90°, 5 GHz: 45°

• Maximum VSWR: 2.5:1

• Polarization: Dual-Linear

• Cross-Pol Isolation: 2.4 GHz: 25 dB, 5 GHz: 30 dB

• Antenna Gain: 2.4 GHz: 10 dBi, 5 GHz: 15 dBi

• Mounting: Wall/Pole (Kits Included)
