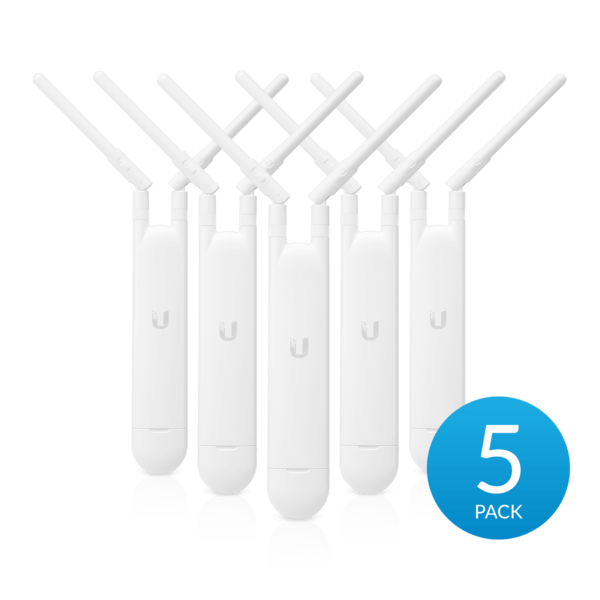

Ubiquiti UniFi 802.11ac Mesh Indoor/Outdoor 2.4/5GHz AP pack 5

UAP-AC-M-5

High-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point.

Expand your Wi-Fi network outdoors with the UniFi® AC Mesh Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance, outdoor, 2x2 MIMO, 802.11AC dual-band access point, capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors, which can be used with the included dual-band omni-directional antennas, or with an optional connectorized dual-band antenna for customized pattern shaping.

Product Specification

• Dimensions: 353 x 46 x 34.4 mm

• Weight with Antennas: 152 g

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Buttons: Reset

• Power Method:

• 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);

• 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)

• (Supported Voltage Range: 44 to 57VDC)

• Power Supply: 24V, 0.5A Gigabit PoE Adapter

• Power Save: Supported

• Maximum Power Consumption: 8.5W

• Maximum TX Power: 2.4 GHz: 20 dBm | 5 GHz: 20 dBm

• Antennas: (2) External Dual-Band Omni Antennas, 2.4 GHz - 3 dBi | 5 GHz - 4 dBi

• Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac

• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

• BSSID: Up to 8 per Radio

• Mounting: Wall/Pole/Fast-Mount (Kits Included)

• Operating Temperature: -30 to 70° C

• Operating Humidity: 5 to 95% Noncondensing

• Certifications: CE, FCC, IC

• VLAN:802.1Q

• Advanced QoS: Per-User Rate Limiting

• Guest Traffic Isolation: Supported

• WMM: Voice, Video, Best Effort, and Background

• Concurrent Clients: 250+

NOTE: Doesn’t include PoE injectores
