Ubiquiti LTU-PRO, 5GHz LTU

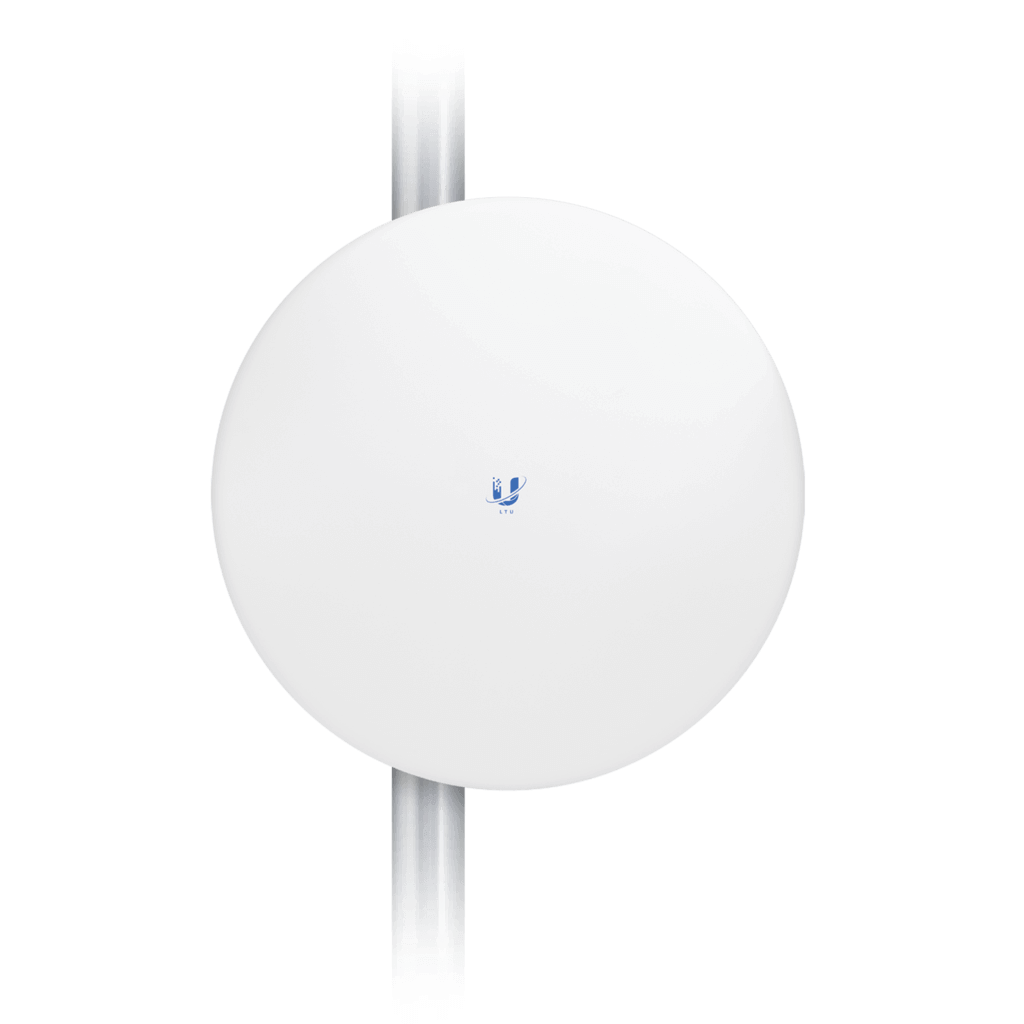

LTU Pro

Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Features:

• PtMP CPE

• 1024 QAM

• 10/20/30/40/50 MHz channel bandwidth

• Central configuration management from AP side

• Frequency split

• Automatic power adjustments

• Router mode support

Functions in a PtMP environment with the LTU-Rocket as the basestation

Product Specification

• Dimensions: 316.5 x 316.5 x 174.3 mm

• Weight: 1.3 kg

• Networking Interface: (1) 10/100/1000 Ethernet Port

• Enclosure: Outdoor UV Stabilized Plastic

• Max. Power Consumption: 9W

• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)

• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)

• Voltage Range: 22 -26V

• Max. Conducted TX Power: 22 dBm (per Chain)

• Gain: 24 dBi

• Beamwidth: 14°

• Sidelobe Level: -10 dB

• Front-to-Back Ratio: 27 dB

• Mounting: Pole-Mount (Kit Included)

• Wind Loading: 150 N @ 200 km/h

• Wind Survivability: 200 km/h

• ESD/EMP Protection: ± 24kV Contact/Air

• Operating Temperature: -5 to 40° C

• Operating Humidity: 10 -90% Noncondensing

• Certifications: CE, FCC, IC

• Operating Frequency EU:

• 2400 -2483.5 MHz

• 5150 -5875 MHz
