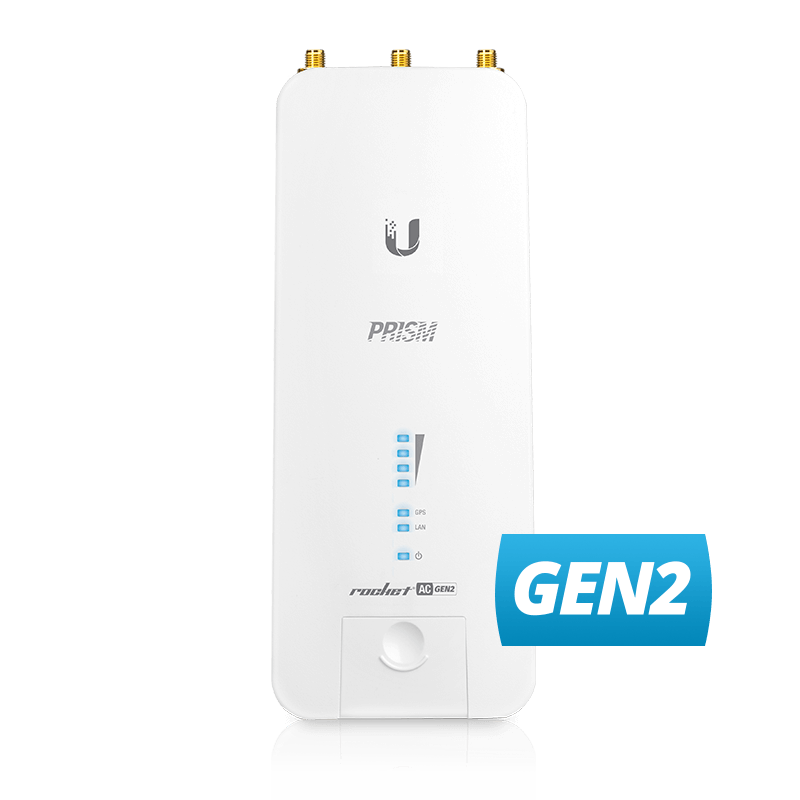

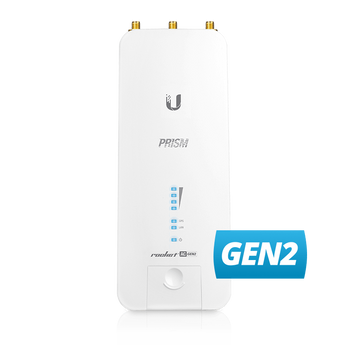

Ubiquiti Networks Rocket Prism 5 GHz airMAX AC Radio BaseStation

RP-5AC-GEN2

The Rocket 5AC Prism Gen2 features revolutionary airPrism RF filtering technology, proprietary airMAX ac chipset, and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Deploy the Rocket 5AC Prism Gen2 for PtP or PtMP links in high-noise environments.

Features:

• Improved radio design

• Improved surge protection

• Management WiFi Radio/UNMS mobile app

• AirOS 8

Product Specification

• Dimensions: 88 x 40 x 230 mm

• Weight: 400 g

• Networking Interface: (1) 10/100/1000 Ethernet Port

• RF Connectors:

• (2) RP-SMA (Waterproof)

• (1) GPS (Waterproof, GPS sync support available in airOS firmware v8.3.0 and newer)

• LEDs:

• (4) Signal Strength

• GPS (GPS sync support available in airOS firmware v8.3.0 and newer)

• LAN

• Power

• Enclosure: Die-Cast Aluminum with White Powder Coating

• Max. Power Consumption: 9.5W

• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)

• Processor Specs: Atheros MIPS 74Kc

• Memory: 128 MB DDR2 SDRAM

• Supported Voltage Range: 18-26VDC

• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels

• Channel Sizes:

• PtP Mode: 10/20/30/40/50/60/80 MHz

• PtMP Mode: 10/20/30/40 MHz

• ESD/EMP Protection: ± 24 kV Contact / Air for Ethernet

• Operating Temperature: -40 to 80° C

• Operating Humidity: 5 to 95% Noncondensing

• RoHS Compliance: Yes

• Shock and Vibration: ETSI300-019-1.4

• Certifications: CE, FCC, IC
