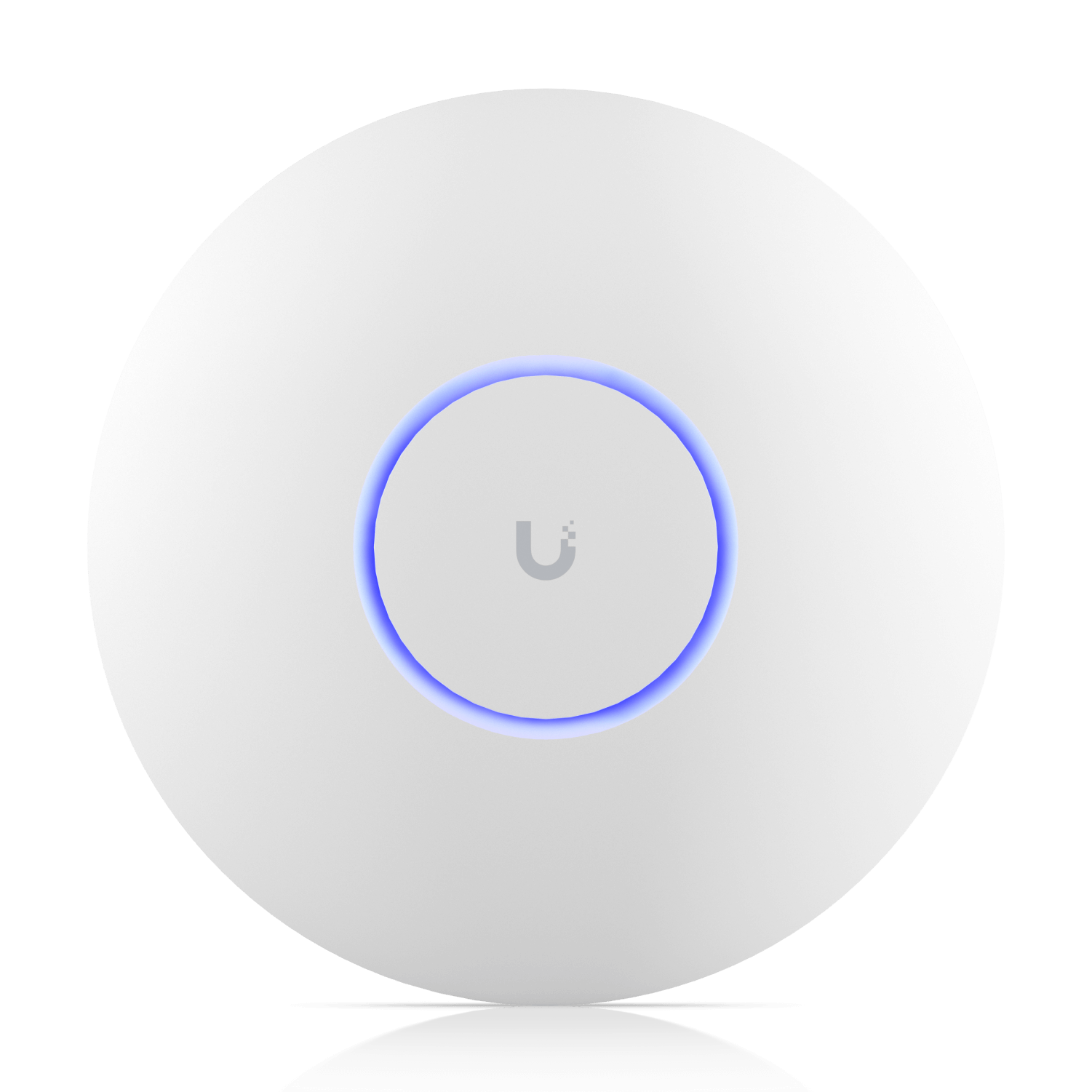

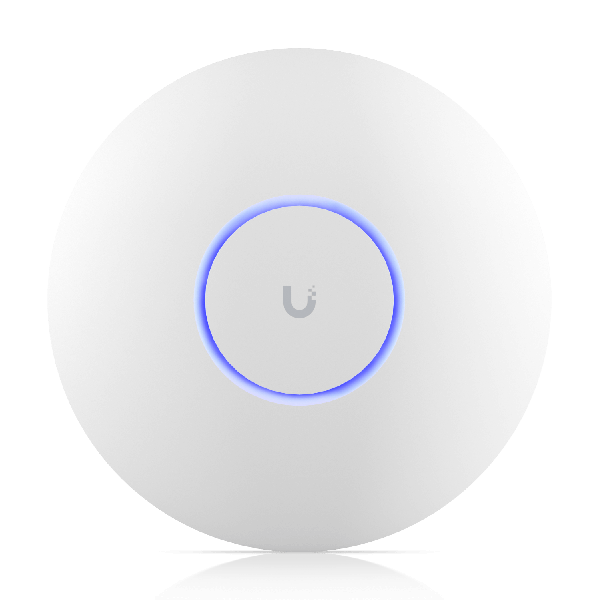

U7-Pro
Dimensions: Ø206 x 46 mm
Weight: 680 g
Enclosure material: Polycarbonate, metal
Mount material: Stainless steel (SUS304), galvanized steel (SGCC)
Networking interface: (1) 1/2.5 GbE RJ45 port
Management Interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 4457V DC
Max. power consumption: 21W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: 23 dBm
MIMO
2.4 GHz: 2 x 2
5 GHz: 2 x 2
6 GHz: 2 x 2
Throughput rate
2.4 GHz: 688 Mbps
5 GHz: 2882 Mbps
6 GHz: 5765 Mbps
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 6 dBi
6 GHz: 5.8 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall/ceiling (Included)
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
WiFi standards: 802.11a/b/g/n/ac/ax/be
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n : 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
UniFi Network: Version 8.0.26 and later
UniFi OS: Version 3.2 and later
