Ubiquiti UniFi Switch Flex Utility

USW-Flex-Utility

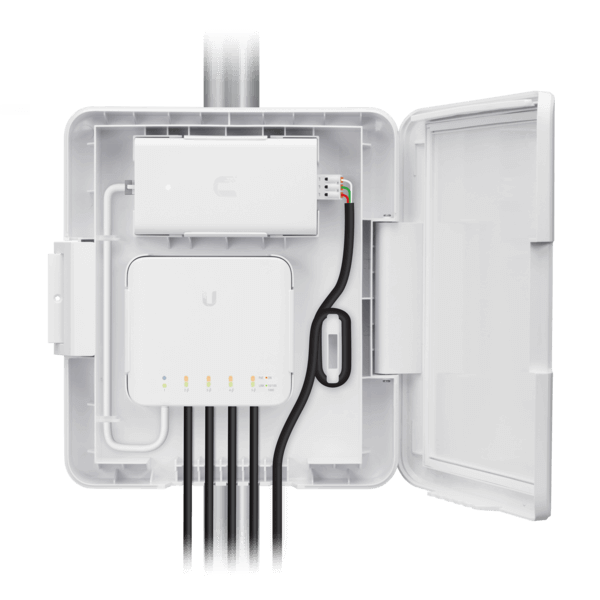

The USW Flex Utility is an outdoor weatherproof enclosure designed for use with the UniFi Switch Flex, USW-Flex. It includes an Ethernet patch cable and a 60W PoE adapter, wich provides a maximum PoE budget of 46W. The USW Flex Utility can be easily mounted on a pole, provides clean cable management and screw lock for security.

Note: UniFi Switch Flex, USW-Flex, sold separately.

Product Specification

• Dimensions (with Mount): 249 x 218 x 60 mm

• Weight (with Mount): 740g

USW-Flex-Utility 60W PoE Adapter

• Dimensions:118.5 x 63 x 34.7 mm

• Weight: 206 g

• Output Voltage: 54V, 1.11A

• Rated Voltage: 100-240VAC

• Input Current: 1.5A (Max.)

• Efficiency: > 86%

• Output Ripple: 200mVpp

• Line Regulation: < 1%

• Load Regulation: < 3%

• 4-Pair Powering: Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-

• Operating Temperature: -20 to 60˚ C

• Storage Temperature: -30 to 70˚ C

• Operating Humidity: 5 to 90%, Noncondensing

• Surge Immunity: 4kV Difference and Common Mode
